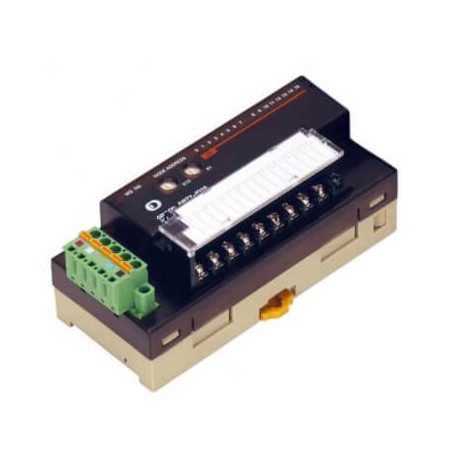

OMRON DRT2-ID16-1 DRT2-ID16-1 DRT27001M DRT2ID161CHN OMRON Module, 16 Inputs PNP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DRT2-ID16-1 DRT27001M DRT2ID161CHN OMRON Module, 16 Inputs PNP

DRT2-ID16-1

DRT27001M

DRT2ID161CHN

OMRON

1 Pcs.

Module, 16 Inputs PNP DeviceNet digital input unit, 16 x inputs, 24 VDC, PNP, screw terminal block

Automation > Fieldbus, decentr. periphery - digital I/O module
DRT (Devicenet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron DRT2-ID16-1 Module, 16 Inputs PNP devices act as digital signal collection nodes designed to interface field sensors with industrial communication networks. They process incoming binary data streams to ensure reliable status reporting across automated systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of voltage (input voltage) (EF003033): DC
  • Type of electric connection (EF003961): Screw connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for EtherNet/IP (EF007521): No

More info

▲
Communication port(s)DeviceNet SlaveType of moduleDigital I/OI/O connection typeScrewConnection method1-wireNumber of digital inputs16Digital input typePNPPermitted voltage at input0-26.4 VNumber of digital outputs0Digital output typeNoneShort-circuit protected outputsI/O systemI/O Expansion LinkDegree of protection (IP)IP20Product Height (unpacked)50 mmProduct Width (unpacked)115 mmProduct Depth (unpacked)49.7 mmProduct Weight (unpacked)200 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
