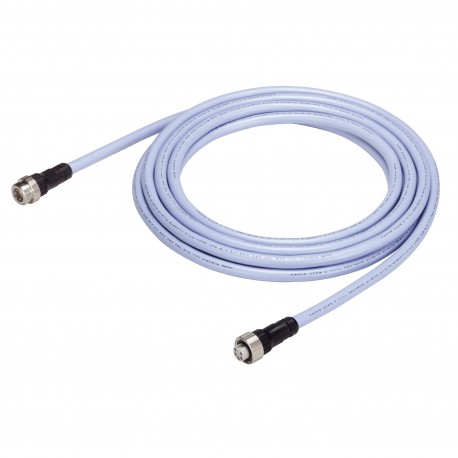

DCA2-5CN05W1 DCA20009M DCA25CN05W1 OMRON Thick Cable IP67 5m Connector on both ends
DCA2-5CN05W1
DCA20009M
DCA25CN05W1
OMRON
1 Pcs.
Automation > Telecommunications patch cord
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron DCA2-5CN05W1 is an IP67 thick cable featuring connectors on both ends, built for robust trunk-line connections in industrial communication networks. Heavy-duty cabling provides reliable data and power distribution across automated manufacturing floors and machine lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 4-point PNP input unit: 24 V, 6 mA
- 8-point PNP input unit: 24 V, 6 mA
- 8-point PNP input unit: 24 V, 11 mA, with power short-circuit and sensor disconnection detection
- 16-point PNP input unit: 24 V, 6 mA, 2 inputs per M12 connector
- 4-point PNP output unit: 24 V, 0.5 A per point
- 8-point PNP output unit: 24 V, 0.5 A per point
- 8-point PNP output unit: 24 V, 1.5 A per point (8 A total), with short-circuit protection + indication
- 16-point PNP output unit: 24 V, 0.5 A per point, 2 points per M12 connector
- 8-point input + 8-point PNP output unit: 24 V, 6 mA input, 0.5 A output per point, 2 points per M12 connector
- DeviceNet thin cable: with one M12 socket connector (female), 1 m
- DeviceNet thin cable: with one M12 socket connector (female), 2 m
- DeviceNet thin cable: with one M12 socket connector (female), 5 m
- DeviceNet thin cable: with one M12 socket connector (female) and one M12 plug connector (male), 1 m
- DeviceNet thin cable: with one M12 socket connector (female) and one M12 plug connector (male), 2 m
- DeviceNet thin cable: with one M12 socket connector (female) and one M12 plug connector (male), 5 m
- DeviceNet T-connector for thin cable: with two M12 socket connectors (female) + one M12 plug connector (male)
More info
▲- IP67 protection, DRT2 versions are also oil- and welding-spatter proof
- Internal circuits powered by DeviceNet; fewer connections means less installation errors
- Smart Slave functions for diagnostics and preventive maintenance
- Indication of broken wire and short-circuit in I/O signals
- M12 connectors for fast installation
Specifications & ordering info
Ordering information
Note: To order models with NPN (sinking) outputs and corresponding inputs (+V common), omit the “-1” from the model code.
