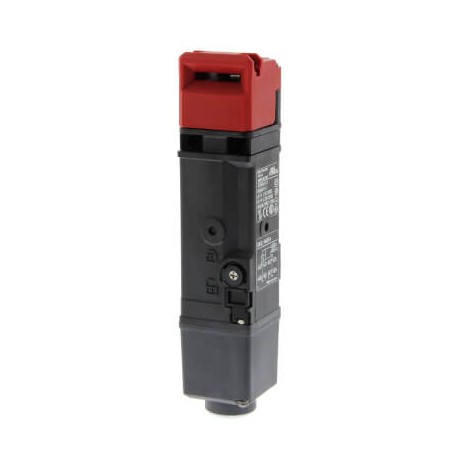

OMRON D4SL-N4VFA D4SL-N4VFA D4SL2045D D4SLN4VFA OMRON Mechanical lock 2NC + 2NC, IP 67 M20, Plastic Terminals View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N4VFA D4SL2045D D4SLN4VFA OMRON Mechanical lock 2NC + 2NC, IP 67 M20, Plastic Terminals

D4SL-N4VFA

D4SL2045D

D4SLN4VFA

OMRON

1 Pcs.

Mechanical lock 2NC + 2NC, IP 67 M20, Plastic Terminals Guard lock safety-door switch, D4SL-N, M20, 2NC + 2NC, head: resin, Mechanical lock / 24 VDC solenoid release

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Safety interlocking devices such as the Omron D4SL-N4VFA mechanical lock safety door switch are critical for protecting operators in industrial plants by locking access gates on hazardous machinery. These robust switches monitor physical access barriers and interface directly with machine safety relays to prevent accidental exposure to moving parts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (NEMA) (EF011959): 4X
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Type of guard locking (EF012608): Quiescent current principle
  • With auxiliary release (EF011964): Yes
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 4
  • Rated operation current Ie at AC-15, 125 V (EF007082): 1.5 A

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headResinAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC2Door contacts NO0Lock monitor contacts NC2Lock monitor contacts NO0Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodSystem connectorCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor155 mmHeight of sensor39 mmWidth of sensor39 mmLock/Release logicPower to unlock (Mechanical lock)
