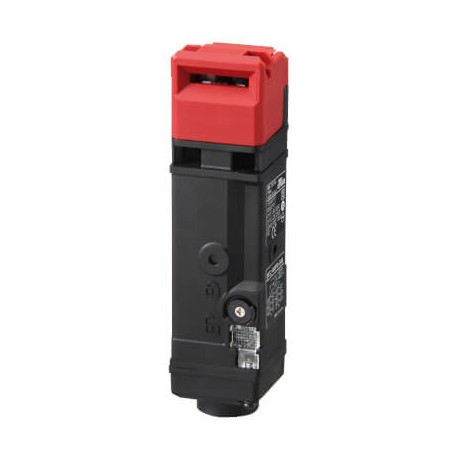

OMRON D4SL-N2HFA-DN D4SL-N2HFA-DN D4SL2122A D4SLN2HFADN OMRON Guard lock safety door switch G1/2 coduit, 3nc contact forms+2NC, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N2HFA-DN D4SL2122A D4SLN2HFADN OMRON Guard lock safety door switch G1/2 coduit, 3nc contact forms+2NC, ..

D4SL-N2HFA-DN

D4SL2122A

D4SLN2HFADN

OMRON

1 Pcs.

Guard lock safety door switch G1/2 coduit, 3nc contact forms+2NC, resin head, solenoid release, indicator, connector

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron guard lock safety door switch D4SL-N2HFA-DN is a key-operated interlock component used to protect operators from machine hazards by securing perimeter gates and access panels. It prevents machine operation until doors are securely closed and locked in place.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Door switch type: Key-operated
  • Material housing: Plastic
  • Material head: Resin
  • Ambient temperature (operating): -10-55 °C
  • Holding force: 1300 N
  • Direction of operation: Adjustable
  • Door contacts NC: 3
  • Door contacts NO: 0
  • Lock monitor contacts NC: 2
  • Lock monitor contacts NO: 0
  • Lock/Release key type: Standard key
  • Lock/Release key position: Front + Back
  • Lock/Release key material: Metal
  • Solenoid voltage: 24 V
  • Connection method: System connector
  • Cable length: 0 m

More info

▲

Specifications

Door switch typeKey-operated
Guard-lock
Material housingPlastic
Material headResin
Ambient temperature (operating)-10-55 °C
Holding force1300 N
Direction of operationAdjustable
Door contacts NC3
Door contacts NO0
Lock monitor contacts NC2
Lock monitor contacts NO0
Lock/Release key typeStandard key
Lock/Release key positionFront + Back
Lock/Release key materialMetal
Solenoid voltage24 V
With LED indicator
Connection methodSystem connector
Cable length0 m
Degree of protection (IP)IP67
Conduit sizeG1/2
Number of conduits1
ShapeCuboid
Overall length155 mm
Height of sensor39 mm
Width sensor39 mm
Lock/Release logicPower to unlock (Mechanical lock)
