> OMRON > Safety > D4DL/DS/DH/DR/GL/NL/NH/NS > D4NL0064M

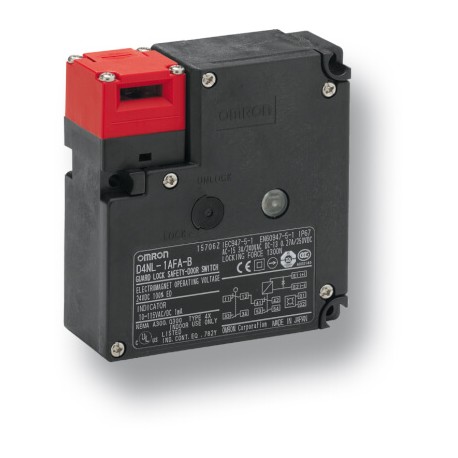

OMRON D4NL-1FFA-B4 D4NL-1FFA-B4 D4NL0064M D4NL1FFAB4 OMRON Guard lock safety-door switch, D4NL, Special Release Key, Mechanical.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4NL-1FFA-B4 D4NL0064M D4NL1FFAB4 OMRON Guard lock safety-door switch, D4NL, Special Release Key, Mechanical..

D4NL-1FFA-B4

D4NL0064M

D4NL1FFAB4

OMRON

1 Pcs.

Guard lock safety-door switch, D4NL, Special Release Key, Mechanical Lock/Solenoid Release, Pg13.5

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

Guard-locking door switch in plastic housing

The D4NL guard-lock safety door switches are available with four or five built-in contacts. When locked, they have a key holding force of up to 1300N. Mechanical lock/solenoid release types and vice versa set up the complete range in combination with various conduit types, e.g. M20.

  • Safety door switch with electromagnetic lock or unlock mechanism
  • Models with four or five built-in contacts
  • Strong key holding force: 1300N
  • For standard loads and micro loads
  • Keys are compatible with D4GL and D4NS

Ordering information

Switches (with approved direct opening contacts)

For 110 V and 230 V version ask your local Omron representative

Lock and release types

Contact configuration

Conduit opening

Order code

Mechanical lock
solenoid release

1NC/1NO + 1NC/1NO

M20

D4NL-4AFA-B

1NC/1NO + 2NC

M20

D4NL-4BFA-B

2NC + 1NC/1NO

M20

D4NL-4CFA-B

2NC + 2NC

M20

D4NL-4DFA-B

2NC/1NO + 1NC/1NO

M20

D4NL-4EFA-B

2NC/1NO + 2NC

M20

D4NL-4FFA-B

3NC + 1NC/1NO

M20

D4NL-4GFA-B

3NC + 2NC

M20

D4NL-4HFA-B
  • Note•Conduit sizes of G1/2 and Pg 13,5 are also available.
  • •Solenoid: 24 VDC, Orange LED: 10 to 115 VAC/VDC

Lock and release types

Contact configuration

Conduit opening

Order code

Solenoid lock
mechanical
release

1NC/1NO + 1NC/1NO

M20

D4NL-4AFG-B

1NC/1NO + 2NC

M20

D4NL-4BFG-B

2NC + 1NC/1NO

M20

D4NL-4CFG-B

2NC + 2NC

M20

D4NL-4DFG-B

2NC/1NO + 1NC/1NO

M20

D4NL-4EFG-B

2NC/1NO + 2NC

M20

D4NL-4FFG-B

3NC + 1NC/1NO

M20

D4NL-4GFG-B

3NC + 2NC

M20

D4NL-4HFG-B

Operation keys (order separately)

Type

Order code

Horizontal mounting


D4DS-K1

Vertical mounting


D4DS-K2

Type

Order code

Adjustable mounting

(horizontal)


D4DS-K3

Adjustable mounting

(horizontal/vertical)


D4DS-K5

Specifications

Degree of protection

IP67 (EN60947-5-1) (This applies for the switch only. The degree of protection for the key hole is IP00.)

Durability1

Mechanical

1,000,000 operations min.

Electrical

500,000 operations min. for a resistive load of 3 A at 250 VAC

Operating speed

0.05 to 0.5 m/s

Operating frequency

30 operations/minute max.

Rated frequency

50/60 Hz

Contact gap

2x2 mm min

Direct opening force2

60 N min. (EN60947-5-1)

Direct opening travel2

10 mm min. (EN60947-5-1)

Holding force

1,300 N min.

Minimum applicable load

Resistive load of 1 mA at 5 VDC (N-level reference value)

Thermal current (Ith)

10 A (EN60947-5-1)

Conditional short-circuit current

100 A (EN60947-5-1)

Pollution degree (operating environment)

3 (EN60947-5-1)

Protection against electric shock

Class II (double insulation)

Ambient temperature

Operating:-10°C to 55°C (with no icing or condensation)

Note:The above values are initial values.

1.The durability is for an ambient temperature of 5°C to 35°C and an ambient humidity of 40 to 70%. For more details, consult your Omron representative.

2.These figures are minimum requirements for safe operation.


ETIM for 133739 Sensors (EC002593)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Construction type housing (EF004008) Special construction
Type of switching contact (EF003591) Slow-action switch
Degree of protection (NEMA) (EF011959) Other
Degree of protection (IP) (EF005474) IP67
Type of interface for safety communication (EF003956) None
Type of electric connection (EF003961) Cable entry PG
Type of interface (EF006977) None
Housing material (EF001596) Other
Explosion safety category for gas (EF003997) None
With status indication (EF001602) Yes
Suitable for safety functions (EF001597) Yes
With escape release (EF007172) Yes
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 1
Guard locking force (EF007552) 1300 N
Rated operation current Ie at AC-15, 230 V (EF001385) 0 A
Rated operation current Ie at DC-13, 125 V (EF007085) 0.27 A
Number of safety auxiliary contacts (EF006940) 0
Rated operation current Ie at DC-13, 24 V (EF007087) 0 A
Rated operation current Ie at DC-13, 230 V (EF001386) 0 A
Number of contacts as normally closed contact (EF008255) 4
Rated operation current Ie at AC-15, 125 V (EF007082) 3 A
Width sensor (EF007094) 88.5 mm
Rated operation current Ie at AC-15, 24 V (EF007084) 0 A
Height of sensor (EF007283) 35.5 mm
Length of sensor (EF007334) 95 mm
Ambient temperature during operating (EF007515) -10 °C
Rated control supply voltage magnet drive DC (EF007070) 20.4 V
