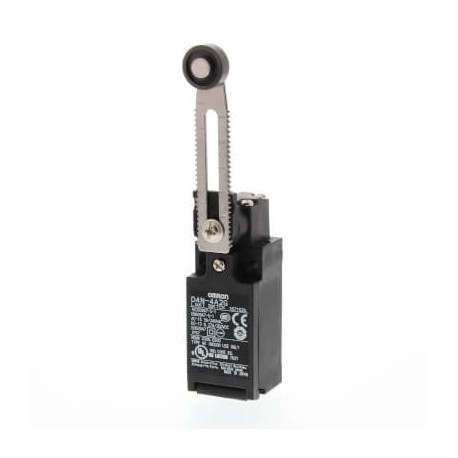

OMRON D4N-422G D4N-422G D4N 0131G D4N422G OMRON Plastic 2NC Sharp Roller adj. M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-422G D4N 0131G D4N422G OMRON Plastic 2NC Sharp Roller adj. M20

D4N-422G

D4N 0131G

D4N422G

OMRON

1 Pcs.

Plastic 2NC Sharp Roller adj. M20 Limit switch, D4N, M20 (1-conduit), 2NC (snap-action), adjustable roller lever (form lock)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron D4N-422G is a plastic safety limit switch designed to monitor physical positions and interlocking guards on industrial machinery. Limit switches are widely utilized in automation systems to detect the presence, passage, or end-of-travel limits of moving parts, ensuring proper operational sequencing and safeguarding operator access areas.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Adjustable roller lever
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
Material housingPlasticActuator typeAdjustable roller leverActuator detailForm lock, Metal lever, Resin rollerConnection methodTerminal blockConduit sizeM20Cable entry directionBottomNumber of contacts, normally-open0Number of contacts, normally-closed2Make before breakSwitch actionSnap action

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
