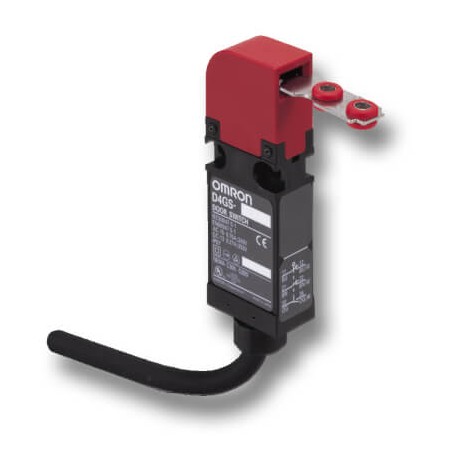

OMRON D4GS-N1T-5 D4GS-N1T-5 D4GS0024D D4GSN1T5 OMRON Input pin vertical 1NO+1NC 3m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4GS-N1T-5 D4GS0024D D4GSN1T5 OMRON Input pin vertical 1NO+1NC 3m

D4GS-N1T-5

D4GS0024D

D4GSN1T5

OMRON

1 Pcs.

Input pin vertical 1NO+1NC 3m Vertical pin input 1NA+1NC 3m Safety door switch, D4GS-N,IP67, 1NC/1NO (slow-action), vertical key insertion, 5m cable

Automation > Position switch with separate actuator
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as a safety position switch, the Omron D4GS-N1T-5 monitors industrial machinery enclosures and interlocks to halt hazardous operations when protective barriers open. These position switches are standard components in safety-instrumented control systems across assembly cells, conveyor networks, and automated manufacturing floors.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): With cable preassembled
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0.75 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.27 A
  • Number of contacts as normally closed contact (EF008255): 1
  • Width sensor (EF007094): 30 mm
  • Height of sensor (EF007283): 17 mm
  • Length of sensor (EF007334): 85 mm

More info

▲
  • Slim housing only 17mm wide
  • Line up with up to three contacts: 1NC/1NO, 2NC, 2NC/1NO and 3NC
  • Reversible design allows front or rear mounting
  • Key operation hole with rubber mounting to absorb vibration and shock
