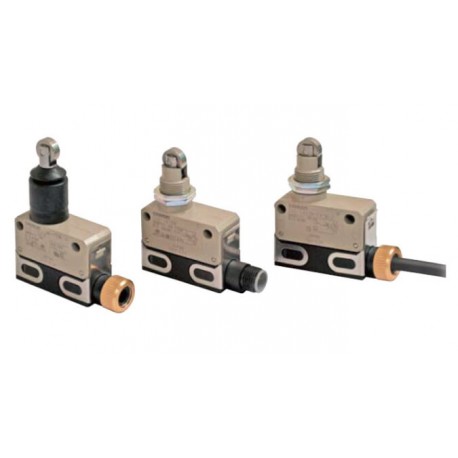

OMRON D4ER-1A22N D4ER-1A22N D4ER0003F D4ER1A22N OMRON Limit switch, slim sealed, screw terminal, general purpose, roller plun.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4ER-1A22N D4ER0003F D4ER1A22N OMRON Limit switch, slim sealed, screw terminal, general purpose, roller plun..

D4ER-1A22N

D4ER0003F

D4ER1A22N

OMRON

1 Pcs.

Limit switch, slim sealed, screw terminal, general purpose, roller plunger, left-hand, pre-cabled, oil-resistant

Automation > End switch
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron D4ER-1A22N slim sealed limit switch is engineered to detect the physical positioning of mechanical parts in confined operational areas where reliable environmental sealing is required. Such sensors are commonly built into precision machinery, packaging systems, and automated testing equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Roller plunger: D4ER-1A21N
  • Crossroller plunger: D4ER-1B21N
  • Plunger: D4ER-1C21N
  • Sealed roller plunger: D4ER-1D21N
  • Sealed crossroller plunger: D4ER-1E21N
  • Roller lever: D4ER-1G21N
  • Long roller plunger: D4ER-1L21N
  • Roller plunger: D4ER-1A21N-DTK1EJ
  • Crossroller plunger: D4ER-1B21N-DTK1EJ
  • Plunger: D4ER-1C21N-DTK1EJ
  • Sealed roller plunger: D4ER-1D21N-DTK1EJ
  • Sealed crossroller plunger: D4ER-1E21N-DTK1EJ
  • Roller lever: D4ER-1G21N-DTK1EJ
  • Long roller plunger: D4ER-1L21N-DTK1EJ
  • Degree of protection: IP67 (IEC 60529) and IP67G (JIS C 0920 Annex 1) 1
  • Durability: Mechanical

More info

▲
  • HNBR/Fluororubber parts prevent infiltration of oil from moving sections
  • Fluorine resin cable withstands cutting oil
  • Models available with SmartClick connectors
  • Minute load model with gold cladding is optimal for electronic control
  • Approved by EN (TÜV)
  • IP67G is the degree of protection which is defined according to the Japanese Industrial Standards JIS C0920

Specifications & ordering info

Ordering information

Cable type

Actuator

Order code

Standard load

Micro load

Right-hand

Left-hand

Right-hand

Left-hand

Roller plunger

D4ER-1A21N

D4ER-1A22N

D4ER-2A21N

D4ER-2A22N

Crossroller plunger

D4ER-1B21N

D4ER-1B22N

D4ER-2B21N

D4ER-2B22N

Plunger

D4ER-1C21N

D4ER-1C22N

D4ER-2C21N

D4ER-2C22N

Sealed roller plunger

D4ER-1D21N

D4ER-1D22N

D4ER-2D21N

D4ER-2D22N

Sealed crossroller plunger

D4ER-1E21N

D4ER-1E22N

D4ER-2E21N

D4ER-2E22N

Roller lever

D4ER-1G21N

D4ER-1G22N

D4ER-2G21N

D4ER-2G22N

Long roller plunger

D4ER-1L21N

D4ER-1L22N

D4ER-2L21N

D4ER-2L22N

Pre-wired (pig-tail) type

Actuator

Order code

Standard load

Micro load

Right-hand

Left-hand

Right-hand

Left-hand

Roller plunger

D4ER-1A21N-DTK1EJ

D4ER-1A22N-DTK1EJ

D4ER-2A21N-DTK1EJ

D4ER-2A22N-DTK1EJ

Crossroller plunger

D4ER-1B21N-DTK1EJ

D4ER-1B22N-DTK1EJ

D4ER-2B21N-DTK1EJ

D4ER-2B22N-DTK1EJ

Plunger

D4ER-1C21N-DTK1EJ

D4ER-1C22N-DTK1EJ

D4ER-2C21N-DTK1EJ

D4ER-2C22N-DTK1EJ

Sealed roller plunger

D4ER-1D21N-DTK1EJ

D4ER-1D22N-DTK1EJ

D4ER-2D21N-DTK1EJ

D4ER-2D22N-DTK1EJ

Sealed crossroller plunger

D4ER-1E21N-DTK1EJ

D4ER-1E22N-DTK1EJ

D4ER-2E21N-DTK1EJ

D4ER-2E22N-DTK1EJ

Roller lever

D4ER-1G21N-DTK1EJ

D4ER-1G22N-DTK1EJ

D4ER-2G21N-DTK1EJ

D4ER-2G22N-DTK1EJ

Long roller plunger

D4ER-1L21N-DTK1EJ

D4ER-1L22N-DTK1EJ

D4ER-2L21N-DTK1EJ

D4ER-2L22N-DTK1EJ

(4) Pre-wired connector
- DTK1EJ: Pre-wired connector
(30-cm oil-resistant cable, M12 Smartclick connector)
None: No connector (oil-resistance cable: 2 m)

Specifications

Degree of protection

IP67 (IEC 60529) and IP67G (JIS C 0920 Annex 1)1

Durability

Mechanical

4,000,000 operations min.

Electrical

500,000 operations min. (Standard load: 1 A at 30 VDC, resistive load/Micro load: 0.1 A at 30 VDC, resistive load)

4,000,000 operations min. (10 mA at 24 VDC, resistive load)

Operating speed

0.1 mm/sec to 0.5 m/sec

Operating frequency

Mechanical: 120 operations/min

Electrical: 30 operations/min

Dielectric strength

Between terminals of same polarity

1,000 VAC, 50/60 Hz for 1 min

Between each terminal and
non-current-carrying metal part

1,500 VAC, 50/60 Hz for 1 min/Uimpat 2.5 kV
(EN 60947-5-1)

Vibration resistance

Malfunction

10 to 55 Hz, 1.5-mm double amplitude

Shock resistance

Destruction

1,000 m/s2max. (IEC 68-2-27)

Malfunction

300 m/s2max. (IEC 68-2-27)

Ambient operating temperature

5°C to 70°C (with no icing or condensation)

Ambient operating humidity

35% to 95%RH (with no condensation)


1.The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance to oil.
