Product Overview

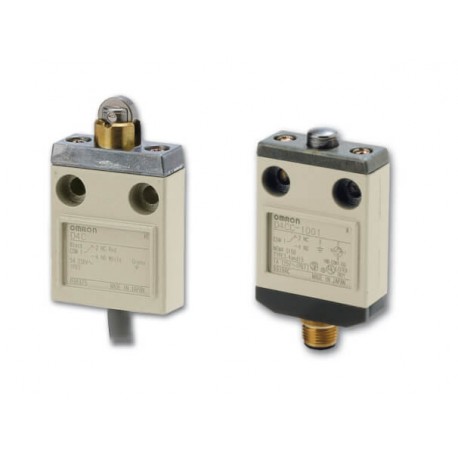

Omron D4C-6320 is a compact end of career unit designed to monitor mechanical movement and signal exact physical positions within automated systems. Limit switches are standard components in industrial machinery, utilized to safely control travel limits, detect part presence, and coordinate sequential operations on production lines. Please note that exact pricing, availability, and lead times are confirmed per enquiry through an RFQ.

  • Plunger: n
  • -: ■
  • Sealed plunger: ■
  • -: ■
  • Plunger with M14 mounting: ■
  • -: ■
  • Roller plunger: ■
  • -: ■
  • Sealed roller plunger: ■
  • -: ■
  • Roller plunger with M14 mounting: ■
  • -: ■
  • Crossroller plunger: ■
  • -: ■
  • Sealed crossroller plunger: ■
  • -: ■

More info

▲
  • 16 mm flat compact size
  • Rugged metal housing
  • Models with M12 connector or oil resistant VCTF cable

Specifications & ordering info

Ordering Information

Actuator type

Load range (VDC)1

Operation LED indicator

Connection method

Order code

0.8 W to 60 W max

No

Yes

Plunger

n

■

-

■

2

D4CC-3001

3 m

D4C-1201

-

■

■

D4CC-4001

3 m

D4C-3201

Sealed plunger

■

-

■

D4CC-3031

3 m

D4C-1231

-

■

■

D4CC-4031

3 m

D4C-3231

Plunger with M14 mounting

■

-

■

D4CC-3041

3 m

D4C-1241

-

■

■

D4CC-4041

3 m

D4C-3241

Roller plunger

■

-

■

D4CC-3002

3 m

D4C-1202

-

■

■

D4CC-4002

3 m

D4C-3202

Sealed roller plunger

■

-

■

D4CC-3032

3 m

D4C-1232

-

■

■

D4CC-4032

3 m

D4C-3232

Roller plunger with M14 mounting

■

-

■

D4CC-3042

3 m

D4C-1242

-

■

■

D4CC-4042

3 m

D4C-3242

Crossroller plunger

■

-

■

D4CC-3003

3 m

D4C-1203

-

■

■

D4CC-4003

3 m

D4C-3203

Sealed crossroller plunger

■

-

■

D4CC-3033

3 m

D4C-1233

-

■

■

D4CC-4033

3 m

D4C-3233

Crossroller plunger with M14 mounting

■

-

■

D4CC-3043

3 m

D4C-1243

-

■

■

D4CC-4043

3 m

D4C-3243

Roller lever

■

-

■

D4CC-3024

3 m

D4C-1220

-

■

■

D4CC-4024

3 m

D4C-3220

Coil spring

■

-

■

D4CC-3050

3 m

D4C-1250

-

■

■

D4CC-4050

3 m

D4C-3250

Specifications

Voltage and current rating

Model

Rated voltage

Rated current3

Non-inductive load

Inductive load

Inrush current

Applicable load range
(5 to 30 VDC)

Resistive load

Lamp load

Inductive load

Motor load

NC

NO

NC

NO

NC

NO

NC

NO

NC

NO

D4C-1☐☐☐

125 VAC

5 A

5 A

1.5 A

0.7 A

3 A

3 A

2.5 A

1.3 A

20 A max.

10 A max.

-

250 VAC

2 A

5 A

5 A

1 A

0.5 A

2 A

2 A

1.5 A

0.8 A

8 VDC

5 A

5 A

2 A

2 A

5 A

4 A

3 A

3 A

0.8 W to 60 W

14 VDC

5 A

5 A

2 A

2 A

4 A

4 A

3 A

3 A

30 VDC

2 A

4 A

4 A

2 A

2 A

3 A

3 A

3 A

3 A

125 VDC

0.4 A

0.4 A

0.05 A

0.05 A

0.4 A

0.4 A

0.05 A

0.05 A

-

250 VDC

0.2 A

0.2 A

0.03 A

0.03 A

0.2 A

0.2 A

0.03 A

0.03 A

D4C-3☐☐☐

30 VDC

2 A

4 A

4 A

2 A

2 A

3 A

3 A

3 A

3 A

0.8 W to 60 W

D4CC-3☐☐☐

D4CC-4☐☐☐

30 VDC

1 A

1 A

1 A

1 A

1 A

1 A

1 A

1 A

1 A

5 A max.

2.5 A max

0.8 W to 30 W

D4C-6☐☐☐

30 VDC

0.1 A

0.1 A

0.1 A

-

-

20 A max.

10 A max.

5 mW to 0.8 W

General specifications

Item

D4C-_ (cable types)

D4CC-_ (connector types)

Durability4

Mechanical

10,000,000 operations min

Electrical

200,000 operations min

Operating frequency

Mechanical

120 operations/min

Electrical

30 operations/min

LED indicator

D4C-3_, D4C-6_, D4CC-4_: Operation indicator (red)
Operation indicator turns OFF when the switch operates.5

Ambient temperature

Operating

-10 to 70°C (with no icing)

Degree of protection

IEC 60529: IP67


1.See specifications for details on max. current per rated voltage and load type. Micro load models with 5mW to 0.8W are available. For ordering refer to complete datasheet.

2.Pre-wired models with 30 cm PVC cable and M12 plug (pigtail) are available. Contact your OMRON representative.

3.For D4C- cable types these ratings are certified by TÜV Rheinland according to EN60947-5-1 (file no R9451333).

4.Values are acquired at 5 to 35°C operating temperature, 40% to 70% operating humidity.

5.Models where operation indicator turns ON when the switch operates are available by adding “-B” to the order code. Contact your OMRON representative for availability.


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
