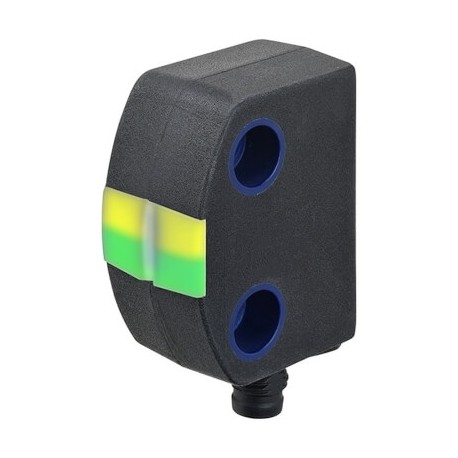

OMRON D41D-1CD-N1 D41D-1CD-N1 D41D8001F D41D1CDN1 OMRON Non-contact Interlock Switch, RFID High-coded, PNP, Test Pulse, Connec.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D41D-1CD-N1 D41D8001F D41D1CDN1 OMRON Non-contact Interlock Switch, RFID High-coded, PNP, Test Pulse, Connec..

D41D-1CD-N1

D41D8001F

D41D1CDN1

OMRON

1 Pcs.

Non-contact Interlock Switch, RFID High-coded, PNP, Test Pulse, Connector plug M8

Automation > Position switch with separate actuator
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A non-contact interlock switch such as the D41D-1CD-N1 D41D8001F D41D1CDN1 OMRON Non-contact Interlock Switch, RFID High-coded, PNP, Test Pulse, Connec.. provides secure position monitoring for protective doors using coded signals to prevent tampering. These units integrate into safety control architectures to protect personnel from hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA) (EF011959): 6
  • Coating housing (EF001601): Plastic-coated
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Connector M8
  • Housing material (EF001596): Plastic
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Number of safety auxiliary contacts (EF006940): 1
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.25 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 18 mm
  • Height of sensor (EF007283): 29.5 mm
  • Length of sensor (EF007334): 47.5 mm

More info

▲
CodingUniqueConnection methodConnector M8 - 8 pinDegree of protection (IP)IP65/IP67Diagnostic LEDDoor contacts NC2Door contacts NO1Door switch typeNon-contact, RFID codedGuard-lockHigh coding levelLED indicatorMaterial housingPBTNumber of auxiliary outputs1Auxiliary monitoring outputPNP type, short-circuit proofCable exit directionBottomMake before breakMax. differential travel20 %Max. operating distance ON to OFF18 mmMin. operating distance OFF to ON10 mmMounting methodM4 screwsNumber of connectable switches30 max. (wiring length: 100 m max.)Number of OSSD2Output test pulsesOutput typePNPShapeRectangular compactSwitch without actuatorTeaching limitationVibration resistance10 to 55 Hz, amplitude 1.0 mm
