View larger
Images are for illustrative purposes only. Please refer to data sheet for details

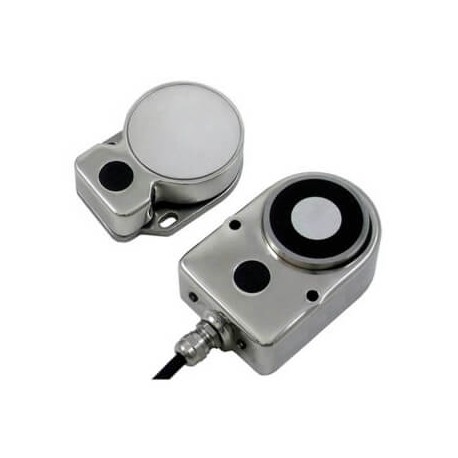

D40ML-SS2-B-M12 AA044839B D40MLSS2BM12 OMRON Switch Magnetic Lock PLe Basic RFID Stainless steel. IP69K 600N..
D40ML-SS2-B-M12
AA044839B
D40MLSS2BM12
OMRON
1 Pcs.
Switch Magnetic Lock PLe Basic RFID Stainless steel. IP69K 600N M12
Basic Stainless Steel PLe RFID Magnetic Blocking Switch. IP69K 600N M12
RFID Magnetic Locking Safety Switch,Stainless Steel, 600N, Basic Actuator Code, Pigtail w/M12 Connector
Automation > Position switch with guard locking
Contactless Switches TGR
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Door switch typeRFID magneticGuard-lockCodingBasicMaterial housingStainless steelAmbient temperature (operating)-25-40 °CHolding force600 NDoor contacts NC2Door contacts NO0Lock monitor contacts NC0Lock monitor contacts NO1Lock/Release key typeNot ApplicableSolenoid voltage24 VLED indicatorConnection methodM12 pigtail connectorCable length0.25 mDegree of protection (IP)IP67Overall length of sensor96 mmHeight of sensor37 mmWidth of sensor64 mmSwitch without actuatorLock/Release logicPower to lock (Solenoid lock)
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Special construction |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Uncoated |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | Connector M12 |
| Type of interface (EF006977) | None |
| Housing material (EF001596) | Metal |
| Explosion safety category for gas (EF003997) | None |
| With status indication (EF001602) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Guard locking force (EF007552) | 600 N |
| Number of safety auxiliary contacts (EF006940) | 1 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 0.2 A |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Width sensor (EF007094) | 64 mm |
| Height of sensor (EF007283) | 37 mm |
| Length of sensor (EF007334) | 96 mm |
| Ambient temperature during operating (EF007515) | -25 °C |
| Rated control supply voltage magnet drive DC (EF007070) | 21.6 V |
