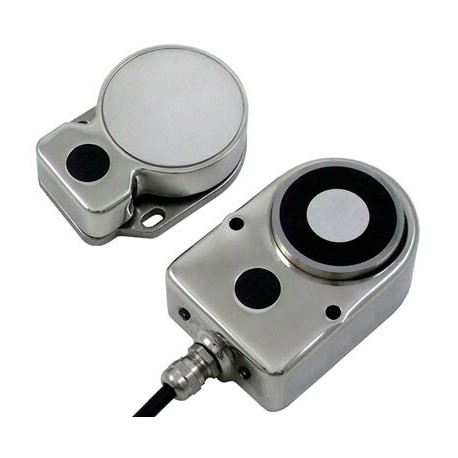

OMRON D40ML-SS1-B-10M D40ML-SS1-B-10M AA044807D D40MLSS1B10M OMRON Switch Magnetic Lock PLe Basic RFID Stainless steel. IP69K 950N.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D40ML-SS1-B-10M AA044807D D40MLSS1B10M OMRON Switch Magnetic Lock PLe Basic RFID Stainless steel. IP69K 950N..

D40ML-SS1-B-10M

AA044807D

D40MLSS1B10M

OMRON

1 Pcs.

Switch Magnetic Lock PLe Basic RFID Stainless steel. IP69K 950N cable 10m Basic Stainless Steel PLe RFID Magnetic Blocking Switch. IP69K 950N cable 10m RFID Magnetic Locking Safety Switch, Stainless Steel, 950N, Basic Actuator Code, 10m Cable

Automation > Position switch with guard locking
Contactless Switches TGR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A magnetic safety switch utilized for non-contact monitoring of movable guards, safety gates, and protective covers in demanding factory automation settings. By employing coded magnetic fields, these sensors prevent unauthorized access to active machinery while maintaining high reliability in harsh environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Coating housing (EF001601): Uncoated
  • Type of electric connection (EF003961): With cable preassembled
  • Housing material (EF001596): Metal
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Guard locking force (EF007552): 950 N
  • Number of safety auxiliary contacts (EF006940): 1
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.2 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 80 mm
  • Height of sensor (EF007283): 43 mm
  • Length of sensor (EF007334): 115 mm
  • Ambient temperature during operating (EF007515): -25 °C
