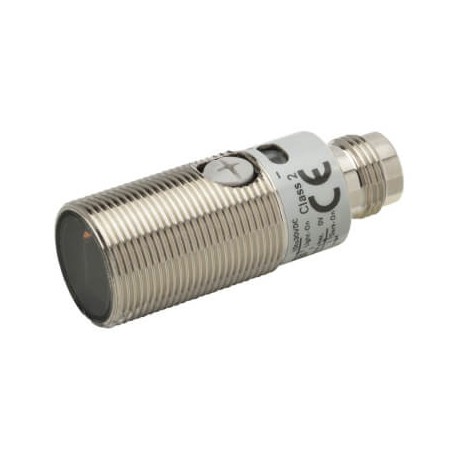

OMRON E3FB-VP21 E3FB-VP21 E3FB2041M E3FBVP21OMI OMRON Metal Reflex limited distance 10-50mm, PNP M12 Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3FB-VP21 E3FB2041M E3FBVP21OMI OMRON Metal Reflex limited distance 10-50mm, PNP M12 Connector

E3FB-VP21

E3FB2041M

E3FBVP21OMI

OMRON

1 Pcs.

Metal Reflex limited distance 10-50mm, PNP M12 Connector Photoelectric sensor, M18 threaded barrel, metal, red LED, limited-reflective, 10 - 50 mm, PNP, Light-ON/Dark-ON, M12 connector

Automation > Light scanner with background masking
E3FA / E3RA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Optimized for cylindrical mounting requirements, the Omron E3FB-VP21 metal reflex sensor provides reliable object detection in automated processing cells. Threaded photoelectric units are commonly installed within machine frameworks, liquid filling stations, and industrial conveyance systems for consistent target registration. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Triangulation (EF008296): Background fade-out
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M12
  • Type of light (EF004029): Polarity free red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No

More info

▲
ShapeCylindrical axialSensing methodLimited reflectiveSensing distance50 mmSensing distance (min.)10 mmSetting methodManual adjustmentConnection methodConnector M12Output typePNPOperation modeDark-ON, Light-ONResponse time0.5 msMaterial housingBrass, nickel platedThread sizeM18Product Length (unpacked)48 mmType of lightPolarity free red lightPower supply voltage10-30 VFeaturesTransparent detectionDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
