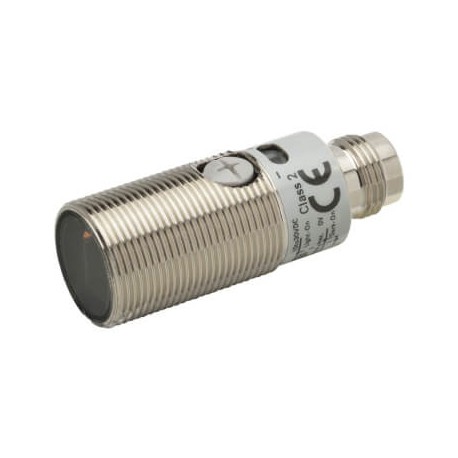

OMRON E3FB-VN21 E3FB-VN21 E3FB2019D E3FBVN21OMI OMRON Metal Reflex limited distance 10-50mm NPN M12 Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3FB-VN21 E3FB2019D E3FBVN21OMI OMRON Metal Reflex limited distance 10-50mm NPN M12 Connector

E3FB-VN21

E3FB2019D

E3FBVN21OMI

OMRON

1 Pcs.

Metal Reflex limited distance 10-50mm NPN M12 Connector Photoelectric sensor, M18 threaded barrel, metal, red LED, limited-reflective, 10 - 50 mm, NPN, Light-ON/Dark-ON, M12 connector

Automation > Light scanner with background masking
E3FA / E3RA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number E3FB-VN21 is a metal reflex photoelectric sensor with a limited sensing distance, tailored for precise object verification in tight factory spaces. Reflex sensors are commonly used in automated systems to detect the presence of parts, confirm mechanical placement, and monitor production streams.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Degree of protection (IP) (EF005474): IP67
  • Setting procedure (EF003994): Manual adjustment
  • Material of optical surface (EF004134): Plastic
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • Type of light (EF004029): Polarity free red light
  • Type of switching output (EF003962): NPN
  • Operation agent-safety class (EF003982): Safety class 3
  • With communication interface RS-485 (EF007314): No
  • Analogue output -10 V ... +10 V (EF006809): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No

More info

▲
ShapeCylindrical axialSensing methodLimited reflectiveSensing distance50 mmSensing distance (min.)10 mmSetting methodManual adjustmentConnection methodConnector M12Output typeNPNOperation modeDark-ON, Light-ONResponse time0.5 msMaterial housingBrass, nickel platedThread sizeM18Product Length (unpacked)48 mmType of lightPolarity free red lightPower supply voltage10-30 VFeaturesTransparent detectionDegree of protection (IP)IP67/IP69K
