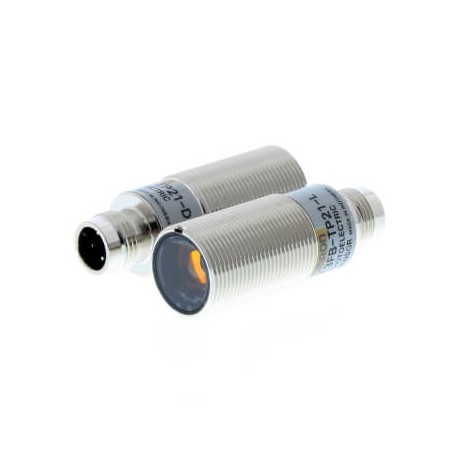

OMRON E3FB-TP21 E3FB-TP21 E3FB2033M E3FBTP21OMI OMRON Metal Barrier 20m PNP M12 Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3FB-TP21 E3FB2033M E3FBTP21OMI OMRON Metal Barrier 20m PNP M12 Connector

E3FB-TP21

E3FB2033M

E3FBTP21OMI

OMRON

1 Pcs.

Metal Barrier 20m PNP M12 Connector Photoelectric sensor, M18 threaded barrel, metal, red LED, through-beam, 20 m, PNP, Light-ON/Dark-ON, M12 connector

Automation > Through beam photoelectric sensor
E3FA / E3RA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E3FB-TP21 metal barrier photoelectric sensor detects objects by interrupting a light beam across industrial automation environments. Optical sensors of this type provide reliable non-contact position sensing, counting, and presence verification on fast-moving production lines.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M12
  • Type of light (EF004029): Polarity free red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No

More info

▲
ShapeCylindrical axialSensing methodThrough-beamSensing distance20000 mmSetting methodManual adjustmentConnection methodConnector M12Output typePNPOperation modeDark-ON, Light-ONResponse time0.5 msMaterial housingBrass, nickel platedThread sizeM18Product Length (unpacked)48 mmType of lightPolarity free red lightPower supply voltage10-30 VDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
