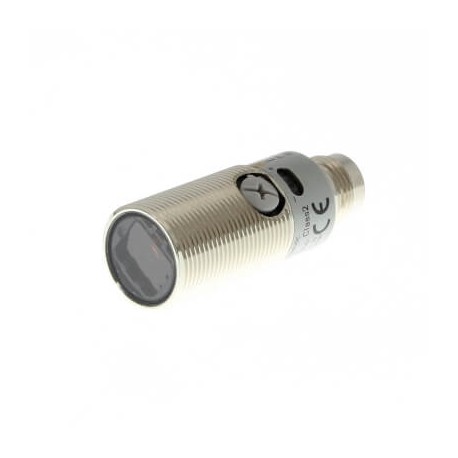

OMRON E3FB-RN22 E3FB-RN22 E3FB2013E E3FBRN22OMI OMRON Metal Mirror (not included) Coaxial 500 mm NPN M12 Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3FB-RN22 E3FB2013E E3FBRN22OMI OMRON Metal Mirror (not included) Coaxial 500 mm NPN M12 Connector

E3FB-RN22

E3FB2013E

E3FBRN22OMI

OMRON

1 Pcs.

Metal Mirror (not included) Coaxial 500 mm NPN M12 Connector Photoelectric sensor, M18 threaded barrel, metal, red LED, coaxial retro-reflective, 500 mm, NPN, Light-ON/Dark-ON, M12 connector

Automation > Retroreflective photoelectric sensor
E3FA / E3RA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed with a rugged metal housing, the Omron E3FB-RN22 photoelectric sensor delivers dependable target detection in harsh industrial manufacturing and conveyor applications. Threaded optical sensors provide straightforward mechanical installation while maintaining consistent optical alignment for automated processes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Degree of protection (IP) (EF005474): IP67
  • Setting procedure (EF003994): Manual adjustment
  • Material of optical surface (EF004134): Plastic
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • Type of light (EF004029): Polarized red light
  • Type of switching output (EF003962): NPN
  • Operation agent-safety class (EF003982): Safety class 3
  • With communication interface RS-485 (EF007314): No
  • Analogue output -10 V ... +10 V (EF006809): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No

More info

▲
ShapeCylindrical axialSensing methodCoaxial retro-reflectiveSensing distance500 mmSensing distance (min.)100 mmSetting methodManual adjustmentConnection methodConnector M12Output typeNPNOperation modeDark-ON, Light-ONResponse time0.5 msMaterial housingBrass, nickel platedThread sizeM18Product Length (unpacked)48 mmType of lightPolarized red lightPower supply voltage10-30 VFeaturesM.S.R.Degree of protection (IP)IP67/IP69K
