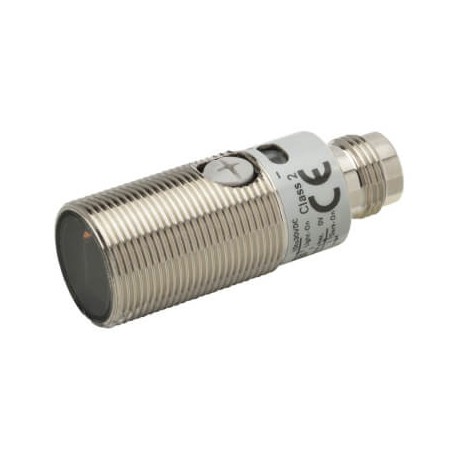

OMRON E3FB-DP21 E3FB-DP21 E3FB2036D E3FBDP21OMI OMRON Metal Reflex 100mm PNP M12 Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3FB-DP21 E3FB2036D E3FBDP21OMI OMRON Metal Reflex 100mm PNP M12 Connector

E3FB-DP21

E3FB2036D

E3FBDP21OMI

OMRON

1 Pcs.

Metal Reflex 100mm PNP M12 Connector Photoelectric sensor, M18 threaded barrel, metal, red LED, diffuse, 100 mm, PNP, Light-ON/Dark-ON, M12 connector

Automation > Diffuse reflective photoelectric sensor
E3FA / E3RA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for high-reliability detection duties, the Omron Metal Reflex 100mm PNP M12 Connector (E3FB-DP21) functions as an optical sensor capable of identifying material surfaces in demanding industrial settings. This cylindrical unit utilizes reflected light beams to trigger control signals, ensuring accurate synchronization in high-speed manufacturing equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M12
  • Type of light (EF004029): Polarity free red light
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCylindrical axialSensing methodDiffuse reflectiveSensing distance100 mmSetting methodManual adjustmentConnection methodConnector M12Output typePNPOperation modeDark-ON, Light-ONResponse time0.5 msMaterial housingBrass, nickel platedThread sizeM18Product Length (unpacked)48 mmType of lightPolarity free red lightPower supply voltage10-30 VDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
