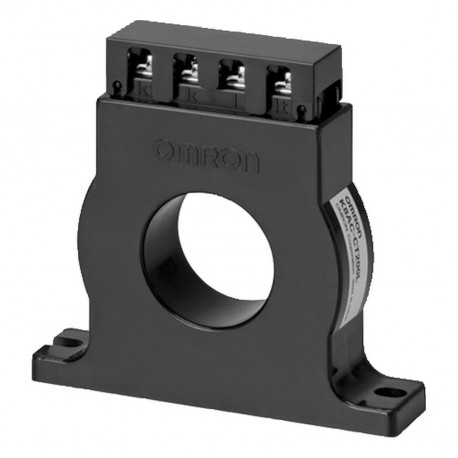

K8AC-CT200L K8AC0016D K8ACCT200L OMRON Current transformer for K8AB-AS3
K8AC-CT200L
K8AC0016D
K8ACCT200L
OMRON
1 Pcs.
Automation > Current transformer
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
K8AC-CT200L Omron current transformer is designed specifically to pair with monitoring relays for detecting overcurrent or undercurrent conditions in industrial automation systems. Such hardware protects heavy machinery and electrical circuits by triggering control responses when load thresholds are breached.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 2 to 20 mA AC/DC, 10 to 100 mA AC/DC, 50 to 500 mA AC/DC: 24 VAC/DC
- 100 to 240 VAC: K8AK-AW1 100-240 VAC
- 0.1 to 1 A AC/DC, 0.5 to 5 A AC/DC: 24 VAC/DC
- 100 to 240 VAC: K8AK-AW2 100-240 VAC
- 10 to 100 A AC, 20 to 200 A AC: 24 VAC/DC
- 100 to 240 VAC: K8AK-AW3 100-240 VAC
- Ambient operating temperature: -20 to 60°C (with no condensation or icing)
- Storage temperature: -25 to 65°C (with no condensation or icing)
- Operating voltage range: 85% to 110% of rated operating voltage
- Rated power supply frequency: 50/60 Hz±5 Hz (AC power supply)
- Output relays (1 × SPDT, normally closed operation): Resistive load
- Maximum contact voltage: 250 VAC or 30 VDC
- Maximum contact current: 5 A
- Maximum switching capacity: 1,250 VA, 150 W
- Mechanical life: 10,000,000 operations
- Electrical life: 50,000 operations at 5 A, 250 VAC or 30 VDC
More info
▲Single-phase current relay, window type
These single-phase current relays monitor over- and undercurrents. Manual resetting and automatic resetting are supported by one relay. The start-up lock and operating time can be set separately. The relay warning status is easily monitored with the LED indicator.
- Single-phase current window relay
- In 22.5 mm wide industrial housing
- Under and over control
- Supply voltages: 24 VAC/DC, 100 to 240 VAC
- Easy wiring with ferrules
Accessories
Note:The K8AK-AW3 is designed to be used in combination with the K8AC-CT200L (direct input not possible)
