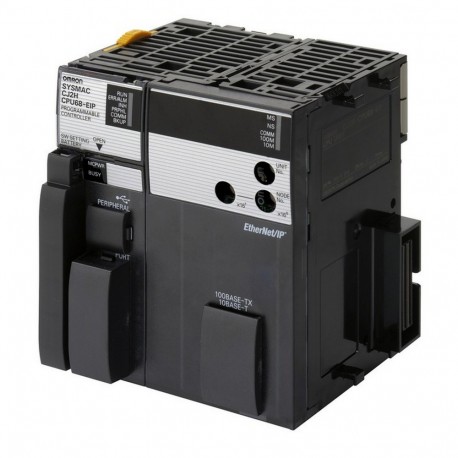

OMRON CJ2H-CPU68-EIP CJ2H-CPU68-EIP CJ2W0005F 249803 OMRON CPU 2560 I/O 400 Ksteps 832 Kw Data Ethernet/IP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ2H-CPU68-EIP CJ2W0005F 249803 OMRON CPU 2560 I/O 400 Ksteps 832 Kw Data Ethernet/IP

CJ2H-CPU68-EIP

CJ2W0005F

CJ2HCPU68EIP

OMRON

1 Pcs.

CPU 2560 E/S 400 Kpasos 832 Kw Data Ethernet/IP CPU with built-in EtherNet/IP port, 400K steps program, 32K words data memory, 32K words x 25 banks EM, 2560 I/O max, RS-232C serial port, USB program

Automation > PLC CPU-module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A high-performance central processing unit from Omron provides robust processing capabilities for large-scale automation systems requiring fast logic execution and extensive data handling. This modular unit manages high-speed machine control, multi-axis motion, and broad network communications via built-in Ethernet protocols. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Program capacity: 400 K steps
  • Data memory capacity: 832 K words
  • Logic execution time: 0.016 µs
  • Max. number of expansion units: 40
  • Max. number of local I/O points: 2560
  • Number of built-in digital I/Os: 0
  • Communication port(s): EtherNet/IP, Ethernet TCP/IP, Serial RS-232C, USB
  • Height: 90 mm
  • Width: 80 mm
  • Depth: 74.5 mm
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No

More info

▲

Specifications

Program capacity400 K steps
Data memory capacity832 K words
Logic execution time0.016 µs
Max. number of expansion units40
Max. number of local I/O points2560
Number of built-in digital I/Os0
Communication port(s)EtherNet/IP, Ethernet TCP/IP, Serial RS-232C, USB
Height90 mm
Width80 mm
Depth74.5 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
