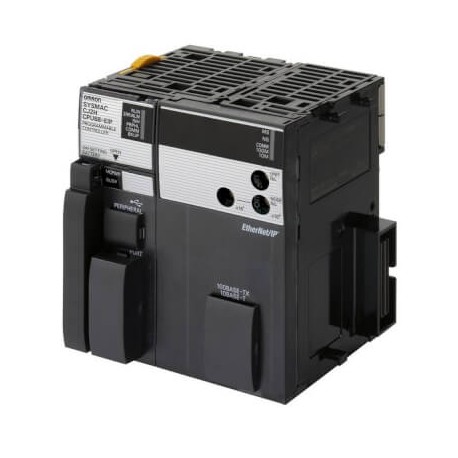

OMRON CJ2H-CPU67-EIP CJ2H-CPU67-EIP CJ2W0004H 249802 OMRON CPU 2560 I/O 250 Ksteps 512 Kw Data Ethernet/IP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ2H-CPU67-EIP CJ2W0004H 249802 OMRON CPU 2560 I/O 250 Ksteps 512 Kw Data Ethernet/IP

CJ2H-CPU67-EIP

CJ2W0004H

CJ2HCPU67EIP

OMRON

1 Pcs.

CPU up to 2560 I/O 250 Kpasos 512 Kw Data Ethernet/IP CPU with built-in EtherNet/IP port, 250K steps program, 32K words data memory, 32K words x 15 banks EM, 2560 I/O max, RS-232C serial port, USB program

Automation > PLC CPU-module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications

Program capacity250 K steps
Data memory capacity512 K words
Logic execution time0.016 µs
Max. number of expansion units40
Max. number of local I/O points2560
Number of built-in digital I/Os0
Communication port(s)EtherNet/IP, Ethernet TCP/IP, Serial RS-232C, USB
Height90 mm
Width80 mm
Depth74.5 mm
Weight280 g

Accessories

CJ1W-CIF11RS-485 adaptor, 2 or 4 wire, connects directly to RS-232C 9-pin port for serial PLC link, screw terminals on RS-485 side
CJ1W-IC101Expansion I/O control unit, connects to right hand side of CPU
CJ1W-II101Expansion I/O interface unit, connects to left hand side of expansion I/O rack, up to 3 expansion racks
CJ1W-PA202Power supply unit, 100-240 VAC, output capacity: 14 W
CJ1W-PA205RPower supply unit, 100-240 VAC, output capacity: 25 W, with RUN output
CJ1W-PD022Power supply unit, 24 VDC, output capacity: 19.6 W
CJ1W-PD025Power supply unit, 24 VDC, output capacity: 25 W
CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
CS1W-CIF31Cable, PC USB to RS-232C converter cable, for Windows 98/ME/2000/XP, drivers included on CD-ROM, an Omron programming cable is also required
CS1W-CN223I/O expansion rack connecting cable for NJ/CJ/CS-series, 2 m
CS1W-CN713I/O expansion rack connecting cable for NJ/CJ/CS-series, 70 cm
CXONE-AL01-EV4Single-user licence for CX-One V4.x software, for Windows 2000/XP/Vista/Windows 7/8/10 (32 and 64 bit), (requires CDs or DVD, CXOne-CD-EV4, or CXOne-DVD-EV4)
HMC-EF183Flash memory card, 128MB
HMC-EF283Flash memory card, 256MB
HMC-EF583Flash memory card, 512MB
W4S1-03B3-port basic Ethernet switch
W4S1-05D5-port enhanced Ethernet switch
XS6W-6LSZH8SS200CM-BEthernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 2 m
XS6W-6LSZH8SS300CM-BEthernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 3 m
XW2Z-200S-VCable, RS-232C, for programming PLC or HMI 9-pin port from PC 9-pin port, 2 m
XW2Z-200TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m
