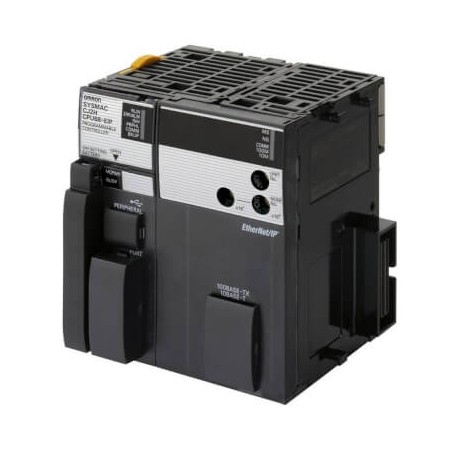

OMRON CJ2H-CPU65-EIP CJ2H-CPU65-EIP CJ2W0002A 249800 OMRON CPU 2560 I/O 100 Ksteps 160 Kw Data Ethernet/IP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ2H-CPU65-EIP CJ2W0002A 249800 OMRON CPU 2560 I/O 100 Ksteps 160 Kw Data Ethernet/IP

CJ2H-CPU65-EIP

CJ2W0002A

CJ2HCPU65EIP

OMRON

1 Pcs.

CPU up to 2560 I/O 100 Kpasos 160 Kw Data Ethernet/IP CPU with built-in EtherNet/IP port, 100K steps program, 32K words data memory, 32K words x 4 banks EM, 2560 I/O max, RS-232C serial port, USB programm

Automation > PLC CPU-module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron CJ2H-CPU65-EIP CPU acts as a high-capacity modular processor core used within complex automation racks to manage large-scale manufacturing plants, high-speed assembly lines, and networked machine cells. This controller executes extensive instruction sets while maintaining rapid scan times across distributed peripheral nodes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Program capacity: 100 K steps
  • Data memory capacity: 160 K words
  • Logic execution time: 0.016 µs
  • Max. number of expansion units: 40
  • Max. number of local I/O points: 2560
  • Number of built-in digital I/Os: 0
  • Communication port(s): EtherNet/IP, Ethernet TCP/IP, Serial RS-232C, USB
  • Height: 90 mm
  • Width: 80 mm
  • Depth: 74.5 mm
  • Weight: 280 g
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No

More info

▲

Specifications

Program capacity100 K steps
Data memory capacity160 K words
Logic execution time0.016 µs
Max. number of expansion units40
Max. number of local I/O points2560
Number of built-in digital I/Os0
Communication port(s)EtherNet/IP, Ethernet TCP/IP, Serial RS-232C, USB
Height90 mm
Width80 mm
Depth74.5 mm
Weight280 g

Accessories

CJ1W-CIF11RS-485 adaptor, 2 or 4 wire, connects directly to RS-232C 9-pin port for serial PLC link, screw terminals on RS-485 side
CJ1W-IC101Expansion I/O control unit, connects to right hand side of CPU
CJ1W-II101Expansion I/O interface unit, connects to left hand side of expansion I/O rack, up to 3 expansion racks
CJ1W-PA202Power supply unit, 100-240 VAC, output capacity: 14 W
CJ1W-PA205RPower supply unit, 100-240 VAC, output capacity: 25 W, with RUN output
CJ1W-PD022Power supply unit, 24 VDC, output capacity: 19.6 W
CJ1W-PD025Power supply unit, 24 VDC, output capacity: 25 W
CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
CS1W-CIF31Cable, PC USB to RS-232C converter cable, for Windows 98/ME/2000/XP, drivers included on CD-ROM, an Omron programming cable is also required
CS1W-CN223I/O expansion rack connecting cable for NJ/CJ/CS-series, 2 m
CS1W-CN713I/O expansion rack connecting cable for NJ/CJ/CS-series, 70 cm
CXONE-AL01-EV4Single-user licence for CX-One V4.x software, for Windows 2000/XP/Vista/Windows 7/8/10 (32 and 64 bit), (requires CDs or DVD, CXOne-CD-EV4, or CXOne-DVD-EV4)
HMC-EF183Flash memory card, 128MB
HMC-EF283Flash memory card, 256MB
HMC-EF583Flash memory card, 512MB
W4S1-03B3-port basic Ethernet switch
W4S1-05D5-port enhanced Ethernet switch
XS6W-6LSZH8SS200CM-BEthernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 2 m
XS6W-6LSZH8SS300CM-BEthernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 3 m
XW2Z-200S-VCable, RS-232C, for programming PLC or HMI 9-pin port from PC 9-pin port, 2 m
XW2Z-200TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
