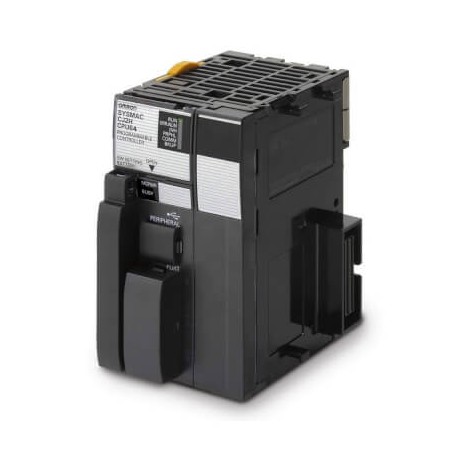

OMRON CJ2H-CPU68 CJ2H-CPU68 CJ2W0010B 268700 OMRON CPU 2560 I/O 400 Ksteps 832 Kw Data View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ2H-CPU68 CJ2W0010B 268700 OMRON CPU 2560 I/O 400 Ksteps 832 Kw Data

CJ2H-CPU68

CJ2W0010B

CJ2HCPU68

OMRON

1 Pcs.

CPU 2560 E/S 400 Kpasos 832 Kw Data CPU, 400K steps program, 32K words data memory, 32K words x 25 banks EM, 2560 I/O max, RS-232C serial port, USB programming port, 3 expansion racks max.

Automation > PLC CPU-module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron CJ2H-CPU68 CPU unit functions as the core processing hub for large-scale automation architectures, orchestrating complex machine logic, extensive data handling, and multi-axis peripheral coordination across industrial manufacturing cells. Programmable controllers of this scale provide deterministic execution and modular expansion capabilities required for demanding, high-throughput applications.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): No

More info

▲
Program capacity400 K stepsData memory capacity832 K wordsLogic execution time0.016 µsMax. number of expansion units40Max. number of local I/O points2560Number of built-in digital I/Os0Communication port(s)Serial RS-232C, USBProduct Height (unpacked)90 mmProduct Width (unpacked)48.8 mmProduct Depth (unpacked)74.5 mmProduct Weight (unpacked)190 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
