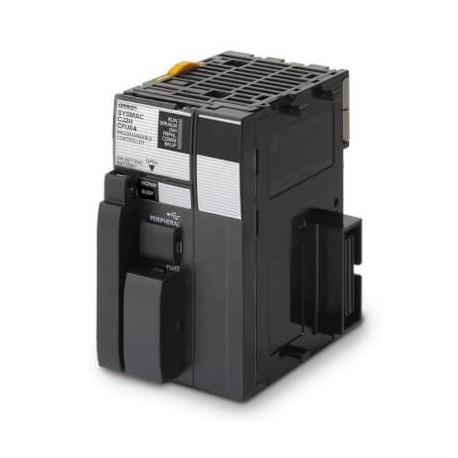

OMRON CJ2H-CPU67 CJ2H-CPU67 CJ2W0009R 268699 OMRON CPU 2560 I/O 250 Ksteps 512 Kw Data View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ2H-CPU67 CJ2W0009R 268699 OMRON CPU 2560 I/O 250 Ksteps 512 Kw Data

CJ2H-CPU67

CJ2W0009R

CJ2HCPU67

OMRON

1 Pcs.

CPU up to 2560 I/O 250 Kpasos 512 Kw Data CPU, 250K steps program, 32K words data memory, 32K words x 15 banks EM, 2560 I/O max, RS-232C serial port, USB programming port, 3 expansion racks max.

Automation > PLC CPU-module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron CJ2H-CPU67 is a high-capacity modular CPU unit deployed in demanding industrial automation architectures to coordinate extensive input and output networks. These processors manage complex machine instructions, multi-axis motion control, and high-speed data logging across large manufacturing plants.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Program capacity: 250 K steps
  • Data memory capacity: 512 K words
  • Logic execution time: 0.016 µs
  • Max. number of expansion units: 40
  • Max. number of local I/O points: 2560
  • Number of built-in digital I/Os: 0
  • Communication port(s): Serial RS-232C, USB
  • Product Height (unpacked): 90 mm
  • Product Width (unpacked): 48.8 mm
  • Product Depth (unpacked): 74.5 mm
  • Product Weight (unpacked): 190 g
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No

More info

▲

Specifications

Program capacity250 K steps
Data memory capacity512 K words
Logic execution time0.016 µs
Max. number of expansion units40
Max. number of local I/O points2560
Number of built-in digital I/Os0
Communication port(s)Serial RS-232C, USB
Product Height (unpacked)90 mm
Product Width (unpacked)48.8 mm
Product Depth (unpacked)74.5 mm
Product Weight (unpacked)190 g

Accessories

CJ1W-CIF11RS-485 adaptor, 2 or 4 wire, connects directly to RS-232C 9-pin port for serial PLC link, screw terminals on RS-485 side
CJ1W-IC101Expansion I/O control unit, connects to right hand side of CPU
CJ1W-II101Expansion I/O interface unit, connects to left hand side of expansion I/O rack, up to 3 expansion racks
CJ1W-PA202Power supply unit, 100-240 VAC, output capacity: 14 W
CJ1W-PA205RPower supply unit, 100-240 VAC, output capacity: 25 W, with RUN output
CJ1W-PD022Power supply unit, 24 VDC, output capacity: 19.6 W
CJ1W-PD025Power supply unit, 24 VDC, output capacity: 25 W
CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
CS1W-CIF31Cable, PC USB to RS-232C converter cable, for Windows 98/ME/2000/XP, drivers included on CD-ROM, an Omron programming cable is also required
CS1W-CN223I/O expansion rack connecting cable for NJ/CJ/CS-series, 2 m
CS1W-CN713I/O expansion rack connecting cable for NJ/CJ/CS-series, 70 cm
CXONE-AL01-EV4Single-user licence for CX-One V4.x software, for Windows 7 (32-bit/64-bit ) / Windows 8.1 (32-bit/64-bit ) / Windows 10 (32-bit/64-bit ) / Windows 11 (64-bit), (requires CDs or DVD, CXOne-CD-EV4, or CXOne-DVD-EV4)
HMC-EF183Flash memory card, 128MB
XW2Z-200S-VCable, RS-232C, for programming PLC or HMI 9-pin port from PC 9-pin port, 2 m
XW2Z-200TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
