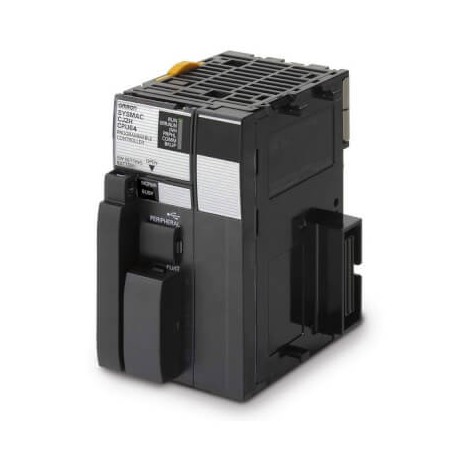

CJ2H-CPU66 CJ2W0008M 268698 OMRON CPU 2560 I/O 150 Ksteps 352 Kw Data
CJ2H-CPU66
CJ2W0008M
CJ2HCPU66
OMRON
1 Pcs.
Automation > PLC CPU-module
CJ1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The CJ2H-CPU66 CJ2W0008M 268698 OMRON CPU 2560 I/O 150 Ksteps 352 Kw Data is a high-performance modular CPU deployed in demanding industrial control applications to manage extensive input/output networks and execute complex automation routines. High-speed central processing units provide rapid cycle times, substantial memory capacities, and seamless connectivity for large-scale manufacturing lines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Program capacity: 150 K steps
- Data memory capacity: 352 K words
- Logic execution time: 0.016 µs
- Max. number of expansion units: 40
- Max. number of local I/O points: 2560
- Number of built-in digital I/Os: 0
- Communication port(s): Serial RS-232C, USB
- Height: 90 mm
- Width: 49 mm
- Depth: 74.5 mm
- Weight: 190 g
More info
▲Specifications
| Program capacity | 150 K steps |
| Data memory capacity | 352 K words |
| Logic execution time | 0.016 µs |
| Max. number of expansion units | 40 |
| Max. number of local I/O points | 2560 |
| Number of built-in digital I/Os | 0 |
| Communication port(s) | Serial RS-232C, USB |
| Height | 90 mm |
| Width | 49 mm |
| Depth | 74.5 mm |
| Weight | 190 g |
Accessories
| CJ1W-CIF11 | RS-485 adaptor, 2 or 4 wire, connects directly to RS-232C 9-pin port for serial PLC link, screw terminals on RS-485 side | |
| CJ1W-IC101 | Expansion I/O control unit, connects to right hand side of CPU | |
| CJ1W-II101 | Expansion I/O interface unit, connects to left hand side of expansion I/O rack, up to 3 expansion racks | |
| CJ1W-PA202 | Power supply unit, 100-240 VAC, output capacity: 14 W | |
| CJ1W-PA205R | Power supply unit, 100-240 VAC, output capacity: 25 W, with RUN output | |
| CJ1W-PD022 | Power supply unit, 24 VDC, output capacity: 19.6 W | |
| CJ1W-PD025 | Power supply unit, 24 VDC, output capacity: 25 W | |
| CP1W-CN221 | USB Programming cable, A-type male to B-type male, 1.8 m | |
| CS1W-CIF31 | Cable, PC USB to RS-232C converter cable, for Windows 98/ME/2000/XP, drivers included on CD-ROM, an Omron programming cable is also required | |
| CS1W-CN223 | I/O expansion rack connecting cable for NJ/CJ/CS-series, 2 m | |
| CS1W-CN713 | I/O expansion rack connecting cable for NJ/CJ/CS-series, 70 cm | |
| CXONE-AL01-EV4 | Single-user licence for CX-One V4.x software, for Windows 2000/XP/Vista/Windows 7/8/10 (32 and 64 bit), (requires CDs or DVD, CXOne-CD-EV4, or CXOne-DVD-EV4) | |
| HMC-EF183 | Flash memory card, 128MB | |
| HMC-EF283 | Flash memory card, 256MB | |
| HMC-EF583 | Flash memory card, 512MB | |
| XW2Z-200S-V | Cable, RS-232C, for programming PLC or HMI 9-pin port from PC 9-pin port, 2 m | |
| XW2Z-200T | Cable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m |
