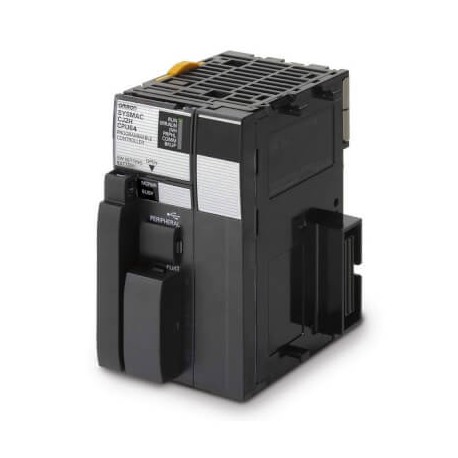

OMRON CJ2H-CPU65 CJ2H-CPU65 CJ2W0007B 268697 OMRON CPU 2560 I/O 100 Ksteps 160 Kw Data View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ2H-CPU65 CJ2W0007B 268697 OMRON CPU 2560 I/O 100 Ksteps 160 Kw Data

CJ2H-CPU65

CJ2W0007B

CJ2HCPU65

OMRON

1 Pcs.

CPU up to 2560 I/O 100 Kpasos 160 Kw Data CPU, 100K steps program, 32K words data memory, 32K words x 4 banks EM, 2560 I/O max, RS-232C serial port, USB programming port, 3 expansion racks max

Automation > PLC CPU-module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron CJ2H-CPU65 is a modular controller processor utilized in factory automation systems to execute sequential logic programs and manage distributed field devices. Industrial processors process signals from various plant sensors to govern the safe and efficient operation of automated assembly lines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): No

More info

▲
Program capacity100 K stepsData memory capacity160 K wordsLogic execution time0.016 µsMax. number of expansion units40Max. number of local I/O points2560Number of built-in digital I/Os0Communication port(s)Serial RS-232C, USBProduct Height (unpacked)90 mmProduct Width (unpacked)48.8 mmProduct Depth (unpacked)74.5 mmProduct Weight (unpacked)190 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
