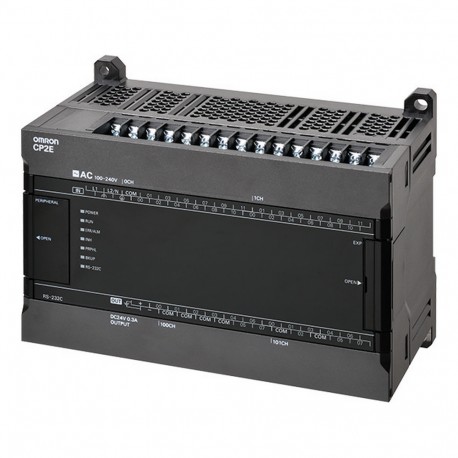

OMRON CP2E-E40DR-A CP2E-E40DR-A CP2W0038A CP2EE40DRA OMRON CP2E series compact PLC Essential Type 24 DI, 16 DO Relay output Pow.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP2E-E40DR-A CP2W0038A CP2EE40DRA OMRON CP2E series compact PLC Essential Type 24 DI, 16 DO Relay output Pow..

CP2E-E40DR-A

CP2W0038A

CP2EE40DRA

OMRON

1 Pcs.

CP2E series compact PLC - Essential Type; 24 DI, 16 DO; Relay output; Power supply 220 VAC; 4 kStep Program memory

Automation > PLC CPU-module
CP2E CPU

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron CP2E-E40DR-A compact PLC acts as an essential automation controller designed for general machine control, building automation, and standard manufacturing applications. The unit combines robust processing with flexible I/O handling to maintain precise operational control across industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Compact
  • Voltage type (supply voltage) (EF002991): AC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): No
  • Supporting protocol for DNP3 (EF016068): No
  • Radio standard GSM (EF008524): No

More info

▲
Supply voltage typeACInput typePNP/NPNNumber of digital inputs24Output typeRelayNumber of digital outputs16Program capacity8 K stepsData memory capacity4 K wordsLogic execution time0.23 µsCommunication port(s)Serial RS-232C, USBNumber of Ethernet ports0Number of USB ports1Number of RS-232 ports1Number of RS-485 ports0Number of encoder input channels6Max. encoder input frequency100 kHzMax. number of PTP axes0Max. pulse output frequency0 kHzFunction Block programmingBattery-free memory backupReal-time clockAnalogue option boardsMax. number of analogue I/O channels24Max. number of local I/O points160Max. number of expansion units3Built-in auxiliary 24 VDC output300 mAOperating temperature range-20-60 °CProduct Height (unpacked)90 mmProduct Width (unpacked)150 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)740 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
