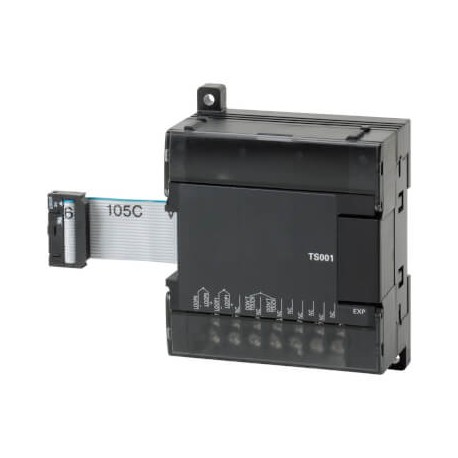

OMRON CP1W-TS102 CP1W-TS102 CP1W9288F 672573 OMRON Expansion Module 4 Inputs Pt100 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1W-TS102 CP1W9288F 672573 OMRON Expansion Module 4 Inputs Pt100

CP1W-TS102

CP1W9288F

CP1WTS102.2

OMRON

1 Pcs.

Module Expansion 4 Pt100 Inputs I/O expansion unit, 4 x RTD inputs Pt100

Automation > PLC analogue I/O-module
CP1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron expansion module, model CP1W-TS102, is an analog input device designed to integrate temperature sensors into industrial automation systems. This type of hardware allows programmable logic controllers to monitor thermal processes by processing signals from specific sensing elements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of module: Analog I/O
  • Number of analog inputs: 4
  • Temperature input type: Pt100
  • Resolution of the analog inputs: 12 Bit
  • Number of analog outputs: 0
  • Height: 90 mm
  • Width: 86 mm
  • Depth: 50 mm
  • Weight: 250 g
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of electric connection (EF003961): Screw connection
  • Output, current (EF003212): No
  • Input, resistor (EF003206): No
  • Input, voltage (EF003205): No
  • Input, thermocouple (EF003208): No
  • Analogue inputs configurable (EF008518): Yes

More info

▲

Specifications

Type of moduleAnalog I/O
Number of analog inputs4
Linear analog input typeNone
Temperature input typePt100
Resolution of the analog inputs12 Bit
Number of analog outputs0
Linear analog output typeNone
Height90 mm
Width86 mm
Depth50 mm
Weight250 g
