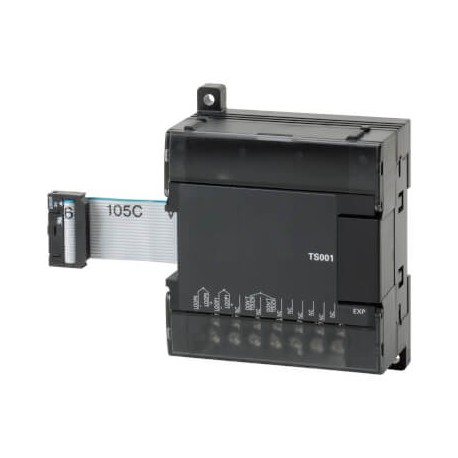

OMRON CP1W-TS101 CP1W-TS101 CP1W9287H CP1WTS101,2 OMRON Module Expansion 2 Pt100 Inputs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1W-TS101 CP1W9287H CP1WTS101,2 OMRON Module Expansion 2 Pt100 Inputs

CP1W-TS101

CP1W9287H

CP1WTS101.2

OMRON

1 Pcs.

Module Expansion 2 Pt100 Inputs I/O expansion unit, 2 x RTD inputs Pt100

Automation > PLC analogue I/O-module
CP1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron CP1W-TS101 module expansion unit acquires temperature readings from industrial resistance thermometer elements and translates them into machine-readable data. Expansion blocks of this classification allow automation systems to monitor thermal environments across manufacturing lines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of electric connection (EF003961): Screw connection
  • Output, current (EF003212): No
  • Input, resistor (EF003206): No
  • Input, voltage (EF003205): No
  • Input, thermocouple (EF003208): No
  • Analogue inputs configurable (EF008518): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Input, current (EF003204): No
  • Analogue outputs configurable (EF008519): No
  • Appendant operation agent (Ex ia) (EF004141): No
  • Input, resistance thermometer (EF003207): Yes
  • Suitable for safety functions (EF001597): No
  • Input signal, configurable (EF003209): Yes
  • Output signal configurable (EF003214): No
  • Output, voltage (EF003213): No

More info

▲
Type of moduleAnalog I/ONumber of analog inputs2Linear analog input typeNoneTemperature input typePt100Resolution of the analog inputs12 BitLinear analog output typeNoneNumber of analog outputs0Resolution of the analog outputs0 BitProduct Height (unpacked)90 mmProduct Width (unpacked)86 mmProduct Depth (unpacked)50 mmProduct Weight (unpacked)250 g
