View larger
Images are for illustrative purposes only. Please refer to data sheet for details

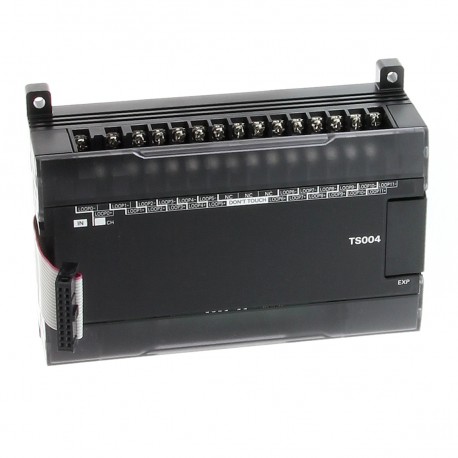

CP1W-TS004 CP1W0190B CP1WTS004 OMRON Module Expansion-12 Inputs Thermocouple
CP1W-TS004
CP1W0190B
CP1WTS004
OMRON
1 Pcs.
Module Expansion-12 Inputs Thermocouple
I/O expansion unit, 12 x thermocouple inputs type J, K
Automation > PLC analogue I/O-module
CP1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Type of moduleAnalog I/ONumber of analog inputs12Linear analog input typeNoneTemperature input typeJ, KResolution of the analog inputs14 BitLinear analog output typeNoneNumber of analog outputs0Resolution of the analog outputs0 BitProduct Height (unpacked)90 mmProduct Width (unpacked)150 mmProduct Depth (unpacked)50 mmProduct Weight (unpacked)380 g
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | None |
| Explosion safety category for gas (EF003997) | None |
| Output, current (EF003212) | No |
| Input, resistor (EF003206) | No |
| Input, voltage (EF003205) | No |
| Input, thermocouple (EF003208) | Yes |
| Analogue inputs configurable (EF008518) | Yes |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Input, current (EF003204) | No |
| Analogue outputs configurable (EF008519) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Input, resistance thermometer (EF003207) | No |
| Suitable for safety functions (EF001597) | No |
| Input signal, configurable (EF003209) | Yes |
| Output signal configurable (EF003214) | No |
| Output, voltage (EF003213) | No |
| Number of analogue inputs (EF001994) | 12 |
| Number of analogue outputs (EF001995) | 0 |
| Width (EF000008) | 150 mm |
| Resolution of the analogue inputs (EF003575) | 14 Bit |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 50 mm |
