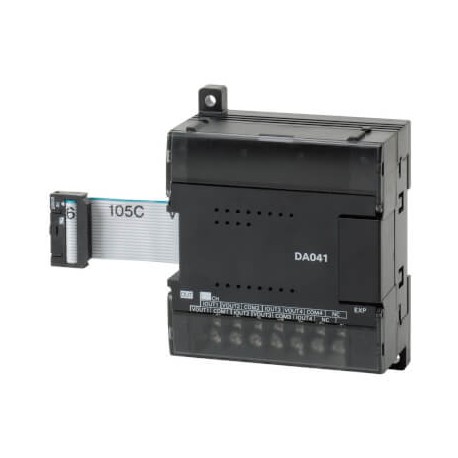

OMRON CP1W-DA041 CP1W-DA041 CP1W9278R CP1WDA041,1 OMRON Module Expansion 4 Analog Outputs, 12-bit, View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1W-DA041 CP1W9278R CP1WDA041,1 OMRON Module Expansion 4 Analog Outputs, 12-bit,

CP1W-DA041

CP1W9278R

CP1WDA041.1

OMRON

1 Pcs.

Module Expansion 4 Analog Outputs, 12-bit, I/O expansion unit, 4 x analog outputs 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4 to 20 mA, resolution 1:6000

Automation > PLC analogue I/O-module
CP1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron CP1W-DA041 is an expansion analog output module utilized in PLC setups to convert internal controller data into proportional control signals for actuators and drives. Such expansion cards allow precise regulation of continuous variables within complex automated machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of electric connection (EF003961): Screw connection
  • Output, current (EF003212): Yes
  • Input, resistor (EF003206): No
  • Input, voltage (EF003205): No
  • Input, thermocouple (EF003208): No
  • Analogue inputs configurable (EF008518): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Input, current (EF003204): No
  • Analogue outputs configurable (EF008519): Yes
  • Appendant operation agent (Ex ia) (EF004141): No
  • Input, resistance thermometer (EF003207): No
  • Suitable for safety functions (EF001597): No
  • Input signal, configurable (EF003209): No
  • Output signal configurable (EF003214): Yes
  • Output, voltage (EF003213): Yes

More info

▲
Type of moduleAnalog I/ONumber of analog inputs0Linear analog input typeNoneTemperature input typeNoneResolution of the analog inputs0 BitLinear analog output type-10 to 10 V, 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mANumber of analog outputs4Resolution of the analog outputs13 BitProduct Height (unpacked)90 mmProduct Width (unpacked)86 mmProduct Depth (unpacked)50 mmProduct Weight (unpacked)200 g
