View larger
Images are for illustrative purposes only. Please refer to data sheet for details

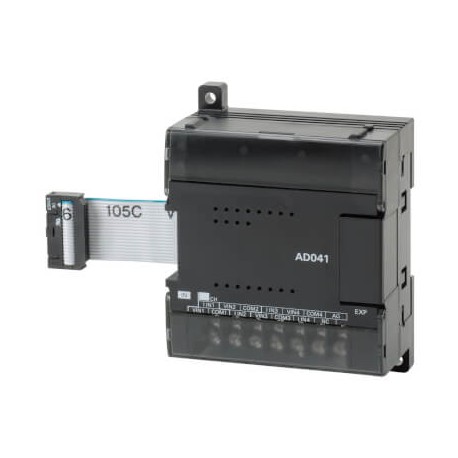

CP1W-AD041 CP1W9272M CP1WAD041,1 OMRON Module Expansion 4 Analog Inputs 12-bit
CP1W-AD041
CP1W9272M
CP1WAD041.1
OMRON
1 Pcs.
Module Expansion 4 Analog Inputs 12-bit
I/O expansion unit, 4 x analog inputs 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4 to 20 mA, resolution 1:6000
Automation > PLC analogue I/O-module
CP1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Type of moduleAnalog I/ONumber of analog inputs4Linear analog input type-10 to 10 V, 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mATemperature input typeNoneResolution of the analog inputs13 BitLinear analog output typeNoneNumber of analog outputs0Resolution of the analog outputs0 BitProduct Height (unpacked)90 mmProduct Width (unpacked)86 mmProduct Depth (unpacked)50 mmProduct Weight (unpacked)200 g
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | None |
| Explosion safety category for gas (EF003997) | None |
| Output, current (EF003212) | No |
| Input, resistor (EF003206) | No |
| Input, voltage (EF003205) | Yes |
| Input, thermocouple (EF003208) | No |
| Analogue inputs configurable (EF008518) | Yes |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Input, current (EF003204) | Yes |
| Analogue outputs configurable (EF008519) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Input, resistance thermometer (EF003207) | No |
| Suitable for safety functions (EF001597) | No |
| Input signal, configurable (EF003209) | Yes |
| Output signal configurable (EF003214) | No |
| Output, voltage (EF003213) | No |
| Number of analogue inputs (EF001994) | 4 |
| Number of analogue outputs (EF001995) | 0 |
| Width (EF000008) | 86 mm |
| Resolution of the analogue inputs (EF003575) | 13 Bit |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 50 mm |
