View larger
Images are for illustrative purposes only. Please refer to data sheet for details

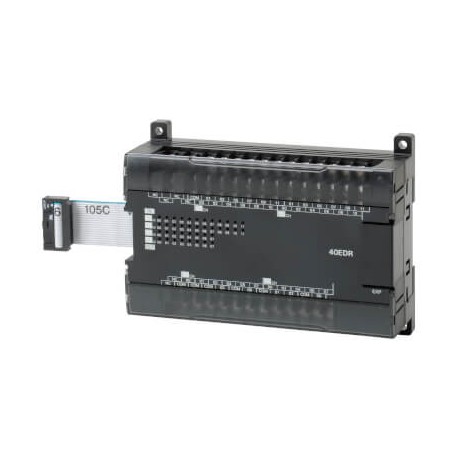

CP1W-40EDR CP1W9265G CP1W40EDR,1 OMRON Module Expansion 24/16 I/O relay Outputs
CP1W-40EDR
CP1W9265G
CP1W40EDR.1
OMRON
1 Pcs.
Module Expansion 24/16 I/O relay Outputs
I/O expansion unit, 24 x 24 VDC inputs, 16 x relay outputs 2 A
Automation > PLC digital I/O-module
CP1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Type of moduleDigital I/ONumber of digital inputs24Digital input typePNP/NPNOFF/ON delay0-32 msPermitted voltage at input20.4-26.4 VNumber of digital outputs16Digital output typeRelay NOOutput current2 APermitted voltage at output5-250 VProduct Height (unpacked)90 mmProduct Width (unpacked)150 mmProduct Depth (unpacked)50 mmProduct Weight (unpacked)380 g
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Type of voltage (input voltage) (EF003033) | DC |
| Type of output voltage (EF008222) | AC/DC |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| Type of digital output (EF003601) | Relay |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Digital inputs configurable (EF008516) | Yes |
| Digital outputs configurable (EF008520) | Yes |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Redundancy (EF003156) | No |
| Suitable for safety functions (EF001597) | No |
| Short-circuit protection, outputs available (EF003203) | No |
| Input current at signal 1 (EF001428) | 5 mA |
| Number of digital outputs (EF001993) | 16 |
| Output current (EF003202) | 2 A |
| Width (EF000008) | 150 mm |
| Number of digital inputs (EF001992) | 24 |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 50 mm |
| Permitted voltage at input (EF007554) | 20.4 V |
| Time delay at signal change (EF002382) | 0 ms |
| Permitted voltage at output (EF007553) | 5 V |
