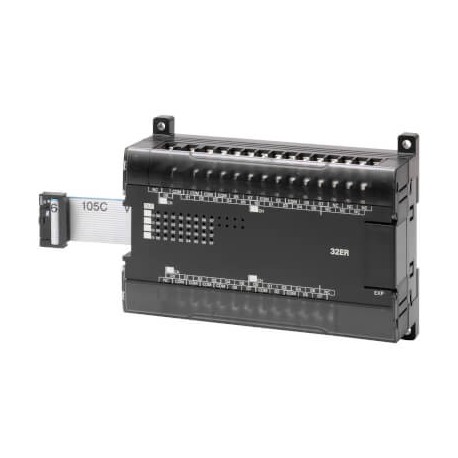

OMRON CP1W-32ER CP1W-32ER CP1W9262B CP1W32ER,1 OMRON Module, Expansion, 32 relay Outputs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1W-32ER CP1W9262B CP1W32ER,1 OMRON Module, Expansion, 32 relay Outputs

CP1W-32ER

CP1W9262B

CP1W32ER.1

OMRON

1 Pcs.

Module, Expansion, 32 relay Outputs I/O expansion unit, 32 x relay outputs 2 A

Automation > PLC digital I/O-module
CP1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron CP1W-32ER is an expansion module featuring relay outputs used to extend the capacity of automation systems. Expansion units allow control architectures to scale by adding discrete output channels to drive external actuators, contactors, and indicator lamps.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of voltage (input voltage) (EF003033): DC
  • Type of output voltage (EF008222): AC/DC
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of digital output (EF003601): Relay
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): DC
  • Digital inputs configurable (EF008516): No
  • Digital outputs configurable (EF008520): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Appendant operation agent (Ex ia) (EF004141): No
  • Redundancy (EF003156): No
  • Suitable for safety functions (EF001597): No
  • Short-circuit protection, outputs available (EF003203): No
  • Number of digital outputs (EF001993): 32
  • Output current (EF003202): 2 A
  • Width (EF000008): 150 mm

More info

▲
Type of moduleDigital I/ONumber of digital inputs0Digital input typeNoneOFF/ON delay15-15 msNumber of digital outputs32Digital output typeRelay NOOutput current2 APermitted voltage at output4.5-30 VProduct Height (unpacked)90 mmProduct Width (unpacked)150 mmProduct Depth (unpacked)50 mmProduct Weight (unpacked)465 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
