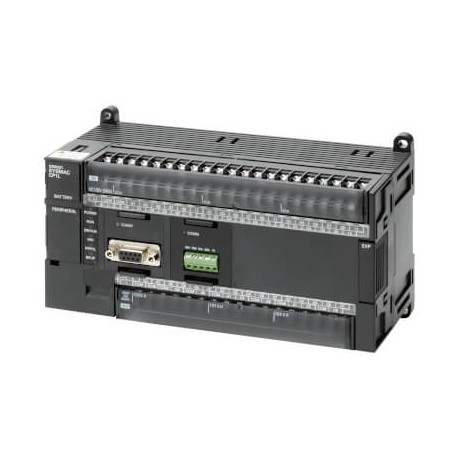

OMRON CP1L-M60DR-D CP1L-M60DR-D CP1W9252E CP1LM60DRD,1 OMRON CPU 36/24 I/O DC relay Outputs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1L-M60DR-D CP1W9252E CP1LM60DRD,1 OMRON CPU 36/24 I/O DC relay Outputs

CP1L-M60DR-D

CP1W9252E

CP1LM60DRD.1

OMRON

1 Pcs.

CPU 36/24 I/O DC relay Outputs PLC, 24 VDC supply, 36 x 24 VDC inputs, 24 x relay outputs 2 A, 10K steps program + 32K words data memory

Automation > PLC CPU-module
Control Systems

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron CP1L-M60DR-D compact CPU functions as a reliable programmable controller unit, ideal for managing industrial control sequences and auxiliary machine operations in compact footprints. Small automation controllers are frequently used in commercial equipment and factory automation cells to handle discrete switching operations and process control tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Compact
  • Voltage type (supply voltage) (EF002991): DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): No

More info

▲
Supply voltage typeDCNumber of digital inputs36Input typePNP/NPNNumber of digital outputs24Output typeRelayProgram capacity10 K stepsData memory capacity32 K wordsLogic execution time0.55 µsCommunication port(s)USBNumber of Ethernet ports0Number of USB ports1Number of RS-232 ports0Number of RS-485 ports0Communication option(s)Serial RS-232C, Serial RS-422, Serial RS-485Number of encoder input channels4Max. encoder input frequency100 kHzMax. number of PTP axes0Max. pulse output frequency0 kHzFunction Block programmingBattery-free memory backupReal-time clockAnalogue option boardsMax. number of analogue I/O channels25Max. number of local I/O points180Max. number of expansion units3Built-in auxiliary 24 VDC output0 mAOperating temperature range0-55 °CProduct Height (unpacked)90 mmProduct Width (unpacked)195 mmProduct Depth (unpacked)85 mmProduct Weight (unpacked)730 g
