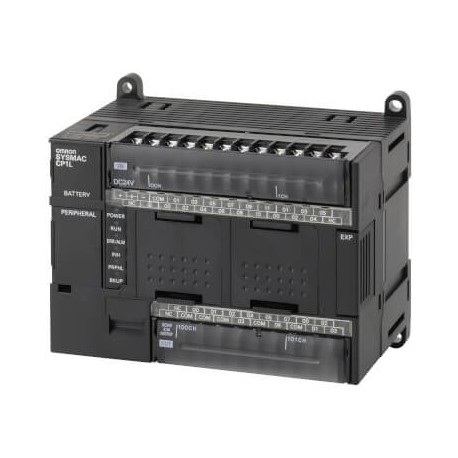

OMRON CP1L-M30DT1-D CP1L-M30DT1-D CP1W9243F CP1LM30DT1D,1 OMRON CPU 18/12 I/O DC PNP Outputs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1L-M30DT1-D CP1W9243F CP1LM30DT1D,1 OMRON CPU 18/12 I/O DC PNP Outputs

CP1L-M30DT1-D

CP1W9243F

CP1LM30DT1D.1

OMRON

1 Pcs.

CPU 18/12 I/O DC PNP Outputs PLC, 24 VDC supply, 18 x 24 VDC inputs, 12 x PNP outputs 0.3 A, 10K steps program + 32K words data memory

Automation > PLC CPU-module
Control Systems

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron CP1L-M30DT1-D CPU operates as a compact programmable logic controller designed to manage small to medium automation tasks in industrial settings. Control units interpret sensor data and execute stored programs to govern automated machinery, conveyor systems, and assembly cells. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Compact
  • Voltage type (supply voltage) (EF002991): DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): No

More info

▲
Supply voltage typeDCNumber of digital inputs18Input typePNP/NPNNumber of digital outputs12Output typePNPProgram capacity10 K stepsData memory capacity32 K wordsLogic execution time0.55 µsCommunication port(s)USBNumber of Ethernet ports0Number of USB ports1Number of RS-232 ports0Number of RS-485 ports0Communication option(s)Serial RS-232C, Serial RS-422, Serial RS-485Number of encoder input channels4Max. encoder input frequency100 kHzMax. number of PTP axes2Max. pulse output frequency100 kHzFunction Block programmingBattery-free memory backupReal-time clockAnalogue option boardsMax. number of analogue I/O channels25Max. number of local I/O points150Max. number of expansion units3Built-in auxiliary 24 VDC output0 mAOperating temperature range0-55 °CProduct Height (unpacked)90 mmProduct Width (unpacked)130 mmProduct Depth (unpacked)85 mmProduct Weight (unpacked)495 g
