OMRON CP1L-L20DT-D CP1L-L20DT-D CP1W9240A CP1LL20DTD,1 OMRON CPU 12/8 I/O DC in NPN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1L-L20DT-D CP1W9240A CP1LL20DTD,1 OMRON CPU 12/8 I/O DC in NPN

CP1L-L20DT-D

CP1W9240A

CP1LL20DTD.1

OMRON

1 Pcs.

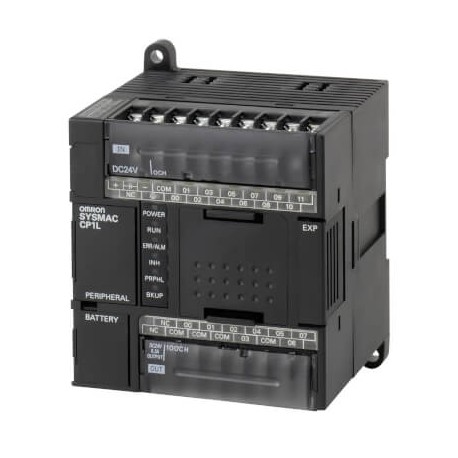

CPU 12/8 I/O DC in NPN PLC, 24 VDC supply, 12 x 24 VDC inputs, 8 x NPN outputs 0.3 A, 5K steps program + 10K words data memory

Automation > PLC CPU-module
Control Systems

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The CP1L-L20DT-D CP1W9240A CP1LL20DTD,1 OMRON CPU 12/8 I/O DC in NPN from Omron is a compact programmable logic controller unit engineered for discrete control tasks in automation engineering. Controllers process input variables from field devices and execute logic loops to regulate motors, valves, and other connected industrial loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Supply voltage type: DC
  • Number of digital inputs: 12
  • Input type: PNP/NPN
  • Number of digital outputs: 8
  • Output type: NPN
  • Program capacity: 5 K steps
  • Data memory capacity: 10 K words
  • Logic execution time: 0.55 µs
  • Communication port(s): USB
  • Number of Ethernet ports: 0
  • Number of USB ports: 1
  • Number of RS-232 ports: 0
  • Number of RS-485 ports: 0
  • Communication option(s): CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
  • Number of encoder input channels: 4
  • Max. encoder input frequency: 100 kHz

More info

▲

Specifications

Supply voltage typeDC
Number of digital inputs12
Input typePNP/NPN
Number of digital outputs8
Output typeNPN
Program capacity5 K steps
Data memory capacity10 K words
Logic execution time0.55 µs
Communication port(s)USB
Number of Ethernet ports0
Number of USB ports1
Number of RS-232 ports0
Number of RS-485 ports0
Communication option(s)CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
Number of encoder input channels4
Max. encoder input frequency100 kHz
Max. number of PTP axes2
Max. pulse output frequency100 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels8
Max. number of local I/O points60
Max. number of expansion units1
Built-in auxiliary 24 VDC output0 mA
Operating temperature range0-55 °C
Height90 mm
Width86 mm
Depth85 mm
Weight335 g

Accessories

CP1W-CIF01CP1 RS-232C (15 m max.) serial communication option board
CP1W-CIF11CP1 RS422/485 (50 m max.) serial communication option board
CP1W-CIF12-V1CP1 RS422/485 (isolated 500 m max.) serial communication option board
CP1W-CIF41CP1 Ethernet communications option, 1 x RJ45 socket
CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
CP1W-CN811I/O expansion cable for CP1-series, 80 cm
CP1W-DAM01LCD option board to CP1L and CP1H
CP1W-ME05MCP1 memory cassette (for upload/download of user program)
CXONE-LT01-EV4CX-One Lite v4.x software, for Windows 2000/XP/Vista, single-user licence only, (requires CDs, CXOne-LTCD-EV4), limited to program the CPx PLC platform

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
