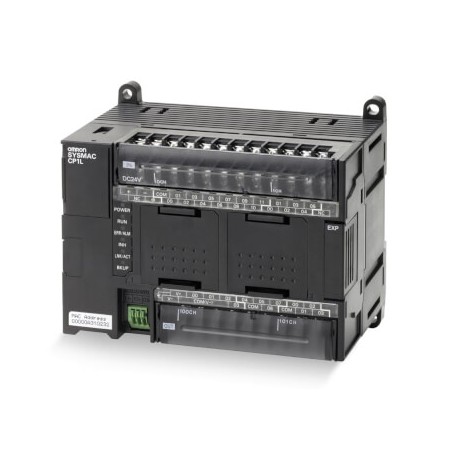

OMRON CP1L-L20DT-A CP1L-L20DT-A CP1W9239H CP1LL20DTA,1 OMRON CPU 12/8 E/S AC NPN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1L-L20DT-A CP1W9239H CP1LL20DTA,1 OMRON CPU 12/8 E/S AC NPN

CP1L-L20DT-A

CP1W9239H

CP1LL20DTA.1

OMRON

1 Pcs.

CPU 12/8 E/S AC NPN CPU 12/8 AC I/O NPN Outputs PLC, 100-240 VAC supply, 12 x 24 VDC inputs, 8 x NPN outputs 0.3 A, 5K steps program + 10K words data memory

Automation > PLC CPU-module
Control Systems

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A compact Omron CPU integrates processing power and localized input-output handling into a single space-saving housing for smaller industrial control tasks. These controllers execute user programs to manage discrete automation processes, conveyor systems, and machine functions efficiently. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Compact
  • Voltage type (supply voltage) (EF002991): AC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
