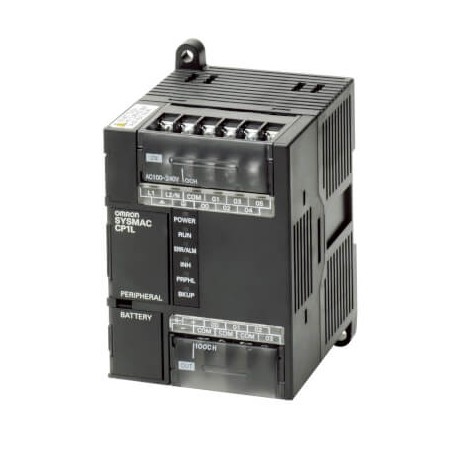

OMRON CP1L-L10DR-D CP1L-L10DR-D CP1W9227D CP1LL10DRD,1 OMRON CPU 6/4 I/O DC relay Outputs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1L-L10DR-D CP1W9227D CP1LL10DRD,1 OMRON CPU 6/4 I/O DC relay Outputs

CP1L-L10DR-D

CP1W9227D

CP1LL10DRD.1

OMRON

1 Pcs.

CPU 6/4 I/O DC relay Outputs PLC, 24 VDC supply, 6 x 24 VDC inputs, 4 x relay outputs 2 A, 5K steps program + 10K words data memory

Automation > PLC CPU-module
Control Systems

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A CP1L-L10DR-D Omron CPU serves as a compact programmable logic controller central processing unit designed to coordinate small-scale automation tasks, monitor digital inputs, and trigger relay outputs within automated machinery. PLC units process operational programs to automate repetitive manufacturing processes, conveyor systems, and building utilities seamlessly.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Supply voltage type: DC
  • Number of digital inputs: 6
  • Input type: PNP/NPN
  • Number of digital outputs: 4
  • Output type: Relay
  • Program capacity: 5 K steps
  • Data memory capacity: 10 K words
  • Logic execution time: 0.55 µs
  • Communication port(s): USB
  • Number of Ethernet ports: 0
  • Number of USB ports: 1
  • Number of RS-232 ports: 0
  • Number of RS-485 ports: 0
  • Number of encoder input channels: 4
  • Max. encoder input frequency: 100 kHz
  • Max. number of PTP axes: 0

More info

▲

Specifications

Supply voltage typeDC
Number of digital inputs6
Input typePNP/NPN
Number of digital outputs4
Output typeRelay
Program capacity5 K steps
Data memory capacity10 K words
Logic execution time0.55 µs
Communication port(s)USB
Number of Ethernet ports0
Number of USB ports1
Number of RS-232 ports0
Number of RS-485 ports0
Communication option(s)None
Number of encoder input channels4
Max. encoder input frequency100 kHz
Max. number of PTP axes0
Max. pulse output frequency0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analogue option boards
Max. number of analogue I/O channels1
Max. number of local I/O points10
Max. number of expansion units0
Built-in auxiliary 24 VDC output0 mA
Operating temperature range0-55 °C
Product Height (unpacked)90 mm
Product Width (unpacked)66 mm
Product Depth (unpacked)85 mm
Product Weight (unpacked)275 g

Accessories

CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
CP1W-ME05MCP1 memory cassette (for upload/download of user program)
CXONE-LT01-EV4CX-One Lite v4.x software, for Windows 7 (32-bit/64-bit ) / Windows 8.1 (32-bit/64-bit ) / Windows 10 (32-bit/64-bit ) / Windows 11 (64-bit), single-user licence only, (requires CDs, CXOne-LTCD-EV4), limited to program the CPx PLC platform
