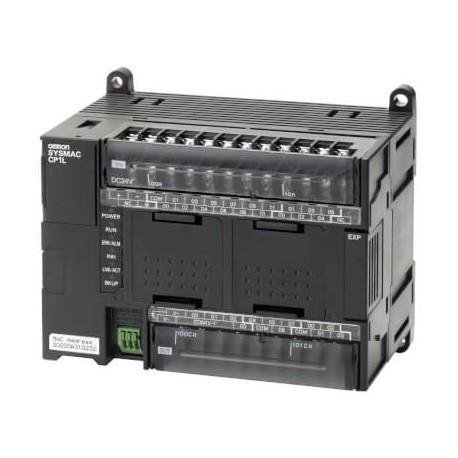

OMRON CP1L-EM30DR-D CP1L-EM30DR-D CP1W9214B CP1LEM30DRD,1 OMRON CPU Ethernet 18/12 I/O DC relay Outputs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1L-EM30DR-D CP1W9214B CP1LEM30DRD,1 OMRON CPU Ethernet 18/12 I/O DC relay Outputs

CP1L-EM30DR-D

CP1W9214B

CP1LEM30DRD.1

OMRON

1 Pcs.

CPU Ethernet - 18/12 I/O DC relay Outputs PLC, 24 VDC supply, 18 x 24 VDC inputs, 12 x relay outputs 2 A, 2 x analog inputs, 10K steps program + 32K words data memory, 1 x Ethernet port

Automation > PLC CPU-module
Control Systems

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A compact Omron CP1L-EM30DR-D CPU handles machine control logic, signal processing, and communication tasks within discrete automation environments. Programmable logic controllers serve as the core processing nodes in automated manufacturing lines, directing peripheral devices based on real-time sensor inputs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Compact
  • Voltage type (supply voltage) (EF002991): DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): No

More info

▲
Supply voltage typeDCNumber of digital inputs18Input typePNP/NPNNumber of digital outputs12Output typeRelayProgram capacity20 K stepsData memory capacity32 K wordsLogic execution time0.55 µsCommunication port(s)Ethernet TCP/IPNumber of Ethernet ports1Number of USB ports0Number of RS-232 ports0Number of RS-485 ports0Communication option(s)Serial RS-232C, Serial RS-422, Serial RS-485Number of encoder input channels4Max. encoder input frequency100 kHzMax. number of PTP axes0Max. pulse output frequency0 kHzFunction Block programmingBattery-free memory backupReal-time clockAnalogue option boardsMax. number of analogue I/O channels34Max. number of local I/O points150Max. number of expansion units3Built-in auxiliary 24 VDC output0 mAOperating temperature range0-55 °CProduct Height (unpacked)90 mmProduct Width (unpacked)130 mmProduct Depth (unpacked)85 mmProduct Weight (unpacked)485 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
