OMRON CP1H-X40DR-A CP1H-X40DR-A CP1W0004C CP1HX40DRA OMRON CPU 24/16 I/O AC relay Outputs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

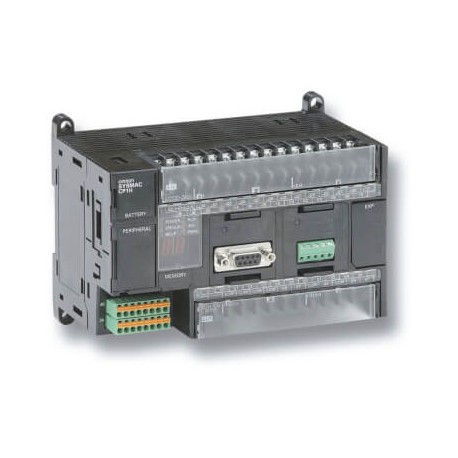

CP1H-X40DR-A CP1W0004C CP1HX40DRA OMRON CPU 24/16 I/O AC relay Outputs

CP1H-X40DR-A

CP1W0004C

CP1HX40DRA

OMRON

1 Pcs.

CPU 24/16 I/O AC relay Outputs PLC, 100-240 VAC supply, 24 x 24 VDC inputs, 16 x relay outputs 2 A, 1 x analog input, 20K steps program + 32K words data memory

Automation > PLC CPU-module
Control Systems

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron CP1H-X40DR-A CPU module serves as a high-performance compact controller designed for advanced machine automation, handling high-speed processing and mixed signal configurations. These units provide integrated control capabilities for complex manufacturing equipment and motion applications.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Compact
  • Voltage type (supply voltage) (EF002991): AC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): No

More info

▲
Supply voltage typeACNumber of digital inputs24Input typePNP/NPNNumber of digital outputs16Output typeRelayProgram capacity20 K stepsData memory capacity32 K wordsLogic execution time0.10 µsCommunication port(s)USBNumber of Ethernet ports0Number of USB ports1Number of RS-232 ports0Number of RS-485 ports0Communication option(s)CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485Number of analog inputs0Number of analog outputs0Number of encoder input channels4Max. encoder input frequency100 kHzMax. number of PTP axes0Max. pulse output frequency0 kHzFunction Block programmingBattery-free memory backupReal-time clockAnalogue option boardsMax. number of analogue I/O channels56Max. number of local I/O points320Max. number of expansion units7Built-in auxiliary 24 VDC output300 mAOperating temperature range0-55 °CProduct Height (unpacked)90 mmProduct Width (unpacked)150 mmProduct Depth (unpacked)85 mmProduct Weight (unpacked)750 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
