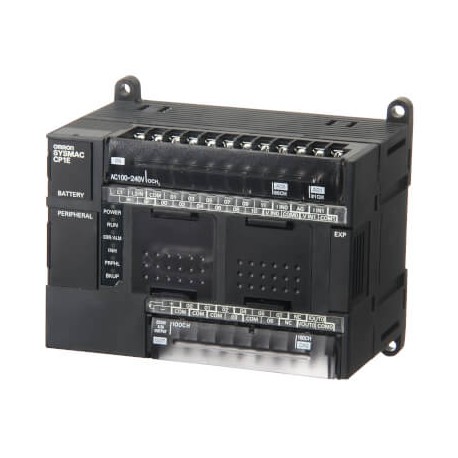

OMRON CP1E-NA20DT1-D CP1E-NA20DT1-D CP1W0117A CP1ENA20DT1D OMRON CPU 12/8 I/O, DC Outputs PNP 2/1 Analog I/O View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1E-NA20DT1-D CP1W0117A CP1ENA20DT1D OMRON CPU 12/8 I/O, DC Outputs PNP 2/1 Analog I/O

CP1E-NA20DT1-D

CP1W0117A

CP1ENA20DT1D

OMRON

1 Pcs.

CPU 12/8 I/O, DC Outputs PNP 2/1 Analog I/O PLC, 24 VDC supply, 12 x 24 VDC inputs, 8 x PNP outputs 0.3 A, 2 x analog inputs, 1 x analog output, resolution 1/6000, 8K steps program + 8K words da

Automation > PLC CPU-module
CPM2C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A compact Omron CP1E-NA20DT1-D programmable logic controller central processing unit executes user programs and coordinates industrial machine automation processes. Controllers of this type interface directly with field devices to monitor sensor states and drive actuators efficiently in standalone machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Compact
  • Voltage type (supply voltage) (EF002991): DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): No

More info

▲
Supply voltage typeDCNumber of digital inputs12Input typePNP/NPNNumber of digital outputs8Output typePNPProgram capacity8 K stepsData memory capacity8 K wordsLogic execution time1.19 µsCommunication port(s)Serial RS-232C, USBNumber of Ethernet ports0Number of USB ports1Number of RS-232 ports1Number of RS-485 ports0Communication option(s)Ethernet TCP/IP, Serial RS-232C, Serial RS-422, Serial RS-485Max. encoder input frequency100 kHzMax. number of PTP axes2Max. pulse output frequency100 kHzFunction Block programmingBattery-free memory backupReal-time clockAnalogue option boardsMax. number of analogue I/O channels31Max. number of local I/O points140Max. number of expansion units3Built-in auxiliary 24 VDC output0 mAOperating temperature range0-55 °CProduct Height (unpacked)90 mmProduct Width (unpacked)130 mmProduct Depth (unpacked)85 mmProduct Weight (unpacked)550 g
