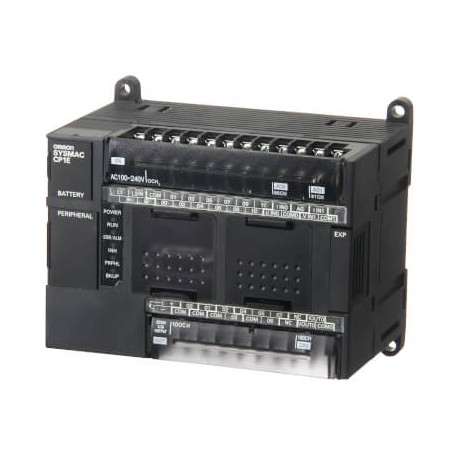

CPU 12/8 I/O AC Relay Outputs 2/1 Analog I/O PLC, 100-240 VAC supply, 12 x 24 VDC inputs, 8 x relay outputs 2 A, 2 x analog inputs, 1 x analog output, resolution 1/6000, 8K steps program + 8K wor

Automation > PLC CPU-module
CPM2C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron CP1E-NA20DR-A is a specialized CPU combining digital logic control with integrated analog input and output channels for process monitoring applications. Controllers with built-in analog capabilities allow direct interfacing with sensors measuring variables like temperature, pressure, or flow without separate modules.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Supply voltage type: AC
  • Number of digital inputs: 12
  • Input type: PNP/NPN
  • Number of digital outputs: 8
  • Output type: Relay
  • Program capacity: 8 K steps
  • Data memory capacity: 8 K words
  • Logic execution time: 1.19 µs
  • Communication port(s): Serial RS-232C, USB
  • Number of Ethernet ports: 0
  • Number of USB ports: 1
  • Number of RS-232 ports: 1
  • Number of RS-485 ports: 0
  • Communication option(s): CompoBus/S Slave, Ethernet TCP/IP, Serial RS-232C, Serial RS-422, Serial RS-485
  • Max. encoder input frequency: 100 kHz
  • Max. number of PTP axes: 0

More info

▲

Specifications

Supply voltage typeAC
Number of digital inputs12
Input typePNP/NPN
Number of digital outputs8
Output typeRelay
Program capacity8 K steps
Data memory capacity8 K words
Logic execution time1.19 µs
Communication port(s)Serial RS-232C, USB
Number of Ethernet ports0
Number of USB ports1
Number of RS-232 ports1
Number of RS-485 ports0
Communication option(s)CompoBus/S Slave, Ethernet TCP/IP, Serial RS-232C, Serial RS-422, Serial RS-485
Max. encoder input frequency100 kHz
Max. number of PTP axes0
Max. pulse output frequency0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analogue option boards
Max. number of analogue I/O channels31
Max. number of local I/O points140
Max. number of expansion units3
Built-in auxiliary 24 VDC output300 mA
Operating temperature range0-55 °C
Product Height (unpacked)90 mm
Product Width (unpacked)130 mm
Product Depth (unpacked)85 mm
Product Weight (unpacked)700 g

Accessories

CP1W-BAT01Battery for the CP1 PLC
CP1W-CIF01CP1 RS-232C (15 m max.) serial communication option board
CP1W-CIF11CP1 RS422/485 (50 m max.) serial communication option board
CP1W-CIF12-V1CP1 RS422/485 (isolated 500 m max.) serial communication option board
CP1W-CIF41CP1 Ethernet communications option, 1 x RJ45 socket
CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
CP1W-CN811I/O expansion cable for CP1-series, 80 cm
CXONE-LT01-EV4CX-One Lite v4.x software, for Windows 2000/XP/Vista, single-user licence only, (requires CDs, CXOne-LTCD-EV4), limited to program the CPx PLC platform

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
