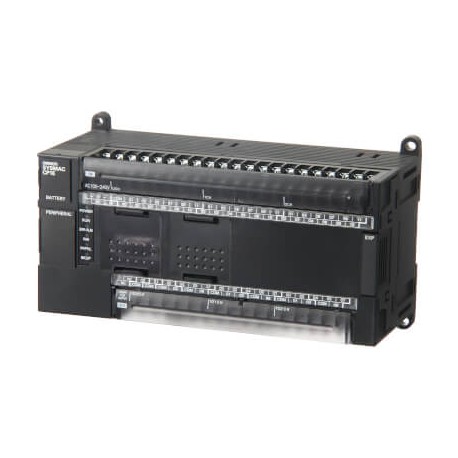

OMRON CP1E-N60DT1-D CP1E-N60DT1-D 333298 CP1EN60DT1D OMRON CPU 36/24 I/O, DC Outputs PNP Transistor 8K Program 8K Data View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1E-N60DT1-D 333298 CP1EN60DT1D OMRON CPU 36/24 I/O, DC Outputs PNP Transistor 8K Program 8K Data

CP1E-N60DT1-D

333298

CP1EN60DT1D

OMRON

1 Pcs.

CPU 36/24 I/O, DC Outputs PNP Transistor 8K Program 8K Data PLC, 24 VDC supply, 36 x 24 VDC inputs, 24 x PNP outputs 0.3 A, 8K steps program + 8K words data memory, RS-232C port

Automation > PLC CPU-module
CPM2C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron CP1E-N60DT1-D is a compact CPU unit equipped with onboard digital inputs and transistor outputs for managing general-purpose machine automation tasks. Microcontrollers and small automation processors process sensor signals and switch loads to govern sequential operations in industrial machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Supply voltage type: DC
  • Number of digital inputs: 36
  • Input type: PNP/NPN
  • Number of digital outputs: 24
  • Output type: PNP
  • Program capacity: 8 K steps
  • Data memory capacity: 8 K words
  • Logic execution time: 1.19 µs
  • Communication port(s): Serial RS-232C, USB
  • Number of Ethernet ports: 0
  • Number of USB ports: 1
  • Number of RS-232 ports: 1
  • Number of RS-485 ports: 0
  • Communication option(s): CompoBus/S Slave, Ethernet TCP/IP, Serial RS-232C, Serial RS-422, Serial RS-485
  • Max. encoder input frequency: 100 kHz
  • Max. number of PTP axes: 2

More info

▲

Specifications

Supply voltage typeDC
Number of digital inputs36
Input typePNP/NPN
Number of digital outputs24
Output typePNP
Program capacity8 K steps
Data memory capacity8 K words
Logic execution time1.19 µs
Communication port(s)Serial RS-232C, USB
Number of Ethernet ports0
Number of USB ports1
Number of RS-232 ports1
Number of RS-485 ports0
Communication option(s)CompoBus/S Slave, Ethernet TCP/IP, Serial RS-232C, Serial RS-422, Serial RS-485
Max. encoder input frequency100 kHz
Max. number of PTP axes2
Max. pulse output frequency100 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels28
Max. number of local I/O points180
Max. number of expansion units3
Built-in auxiliary 24 VDC output0 mA
Operating temperature range0-55 °C
Height90 mm
Width195 mm
Depth85 mm
