View larger
Images are for illustrative purposes only. Please refer to data sheet for details

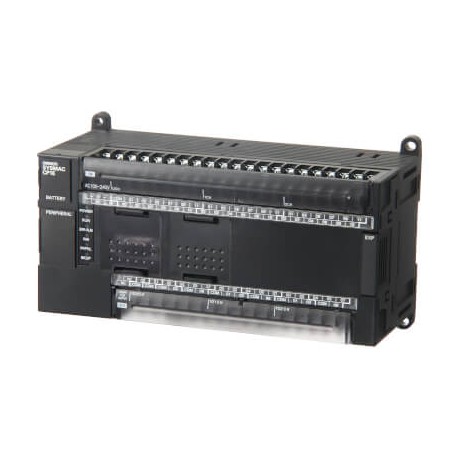

CP1E-N60DR-A 333293 CP1EN60DRA OMRON CPU 36/24 I/O AC Relay Outputs 8K Program 8K Data
CP1E-N60DR-A
333293
CP1EN60DRA
OMRON
1 Pcs.
CPU 36/24 I/O AC Relay Outputs 8K Program 8K Data
PLC, 100-240 VAC supply, 36 x 24 VDC inputs, 24 x relay outputs 2 A, 8K steps program + 8K words data memory, RS-232C port
Automation > PLC CPU-module
CPM2C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Supply voltage type | AC |
| Number of digital inputs | 36 |
| Input type | PNP/NPN |
| Number of digital outputs | 24 |
| Output type | Relay |
| Program capacity | 8 K steps |
| Data memory capacity | 8 K words |
| Logic execution time | 1.19 µs |
| Communication port(s) | Serial RS-232C, USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 1 |
| Number of RS-485 ports | 0 |
| Communication option(s) | CompoBus/S Slave, Ethernet TCP/IP, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 0 |
| Max. pulse output frequency | 0 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real-time clock | |
| Analog option boards | |
| Max. number of analog I/O channels | 28 |
| Max. number of local I/O points | 180 |
| Max. number of expansion units | 3 |
| Built-in auxiliary 24 VDC output | 300 mA |
| Operating temperature range | 0-55 °C |
| Height | 90 mm |
| Width | 195 mm |
| Depth | 85 mm |
| Weight | 850 g |
Accessories
| CP1W-BAT01 | Battery for the CP1 PLC | |
| CP1W-CIF01 | CP1 RS-232C (15 m max.) serial communication option board | |
| CP1W-CIF11 | CP1 RS422/485 (50 m max.) serial communication option board | |
| CP1W-CIF12-V1 | CP1 RS422/485 (isolated 500 m max.) serial communication option board | |
| CP1W-CIF41 | CP1 Ethernet communications option, 1 x RJ45 socket | |
| CP1W-CN221 | USB Programming cable, A-type male to B-type male, 1.8 m | |
| CP1W-CN811 | I/O expansion cable for CP1-series, 80 cm | |
| CXONE-LT01-EV4 | CX-One Lite v4.x software, for Windows 2000/XP/Vista, single-user licence only, (requires CDs, CXOne-LTCD-EV4), limited to program the CPx PLC platform |
