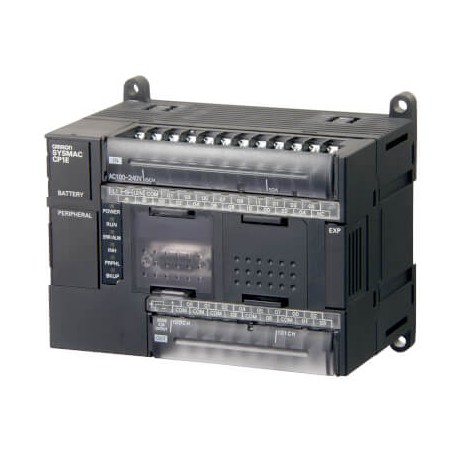

OMRON CP1E-N30DT1-D CP1E-N30DT1-D 298938 CP1EN30DT1D OMRON CPU 18/12 I/O, DC Outputs PNP Transistor 8K Program 8K Data View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1E-N30DT1-D 298938 CP1EN30DT1D OMRON CPU 18/12 I/O, DC Outputs PNP Transistor 8K Program 8K Data

CP1E-N30DT1-D

298938

CP1EN30DT1D

OMRON

1 Pcs.

CPU 18/12 I/O, DC Outputs PNP Transistor 8K Program 8K Data PLC, 24 VDC supply, 18 x 24 VDC inputs, 12 x PNP outputs 0.3 A, 8K steps program + 8K words data memory, RS-232C port

Automation > PLC CPU-module
CPM2C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The CP1E-N30DT1-D 298938 CP1EN30DT1D OMRON CPU 18/12 I/O, DC Outputs PNP Transistor 8K Program 8K Data from Omron is a compact programmable logic controller CPU designed to coordinate discrete automation tasks and machine logic in manufacturing environments. Controllers of this type process input signals from sensors and switches, executing user-defined programs to manage actuators, relays, and industrial networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Supply voltage type: DC
  • Number of digital inputs: 18
  • Input type: PNP/NPN
  • Number of digital outputs: 12
  • Output type: PNP
  • Program capacity: 8 K steps
  • Data memory capacity: 8 K words
  • Logic execution time: 1.19 µs
  • Communication port(s): Serial RS-232C, USB
  • Number of Ethernet ports: 0
  • Number of USB ports: 1
  • Number of RS-232 ports: 1
  • Number of RS-485 ports: 0
  • Communication option(s): CompoBus/S Slave, Ethernet TCP/IP, Serial RS-232C, Serial RS-422, Serial RS-485
  • Max. encoder input frequency: 100 kHz
  • Max. number of PTP axes: 2

More info

▲

Specifications

Supply voltage typeDC
Number of digital inputs18
Input typePNP/NPN
Number of digital outputs12
Output typePNP
Program capacity8 K steps
Data memory capacity8 K words
Logic execution time1.19 µs
Communication port(s)Serial RS-232C, USB
Number of Ethernet ports0
Number of USB ports1
Number of RS-232 ports1
Number of RS-485 ports0
Communication option(s)CompoBus/S Slave, Ethernet TCP/IP, Serial RS-232C, Serial RS-422, Serial RS-485
Max. encoder input frequency100 kHz
Max. number of PTP axes2
Max. pulse output frequency100 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels28
Max. number of local I/O points150
Max. number of expansion units3
Built-in auxiliary 24 VDC output0 mA
Operating temperature range0-55 °C
Height90 mm
Width130 mm
Depth85 mm
