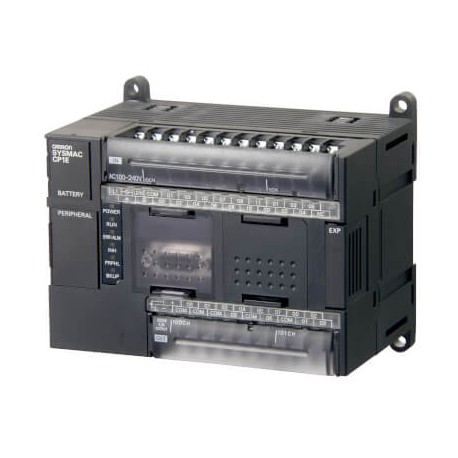

OMRON CP1E-N30DR-A CP1E-N30DR-A 279800 CP1EN30DRA OMRON CPU 18/12 I/O AC Relay Outputs 8K Program 8K Data View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1E-N30DR-A 279800 CP1EN30DRA OMRON CPU 18/12 I/O AC Relay Outputs 8K Program 8K Data

CP1E-N30DR-A

279800

CP1EN30DRA

OMRON

1 Pcs.

CPU 18/12 I/O AC Relay Outputs 8K Program 8K Data PLC, 100-240 VAC supply, 18 x 24 VDC inputs, 12 x relay outputs 2 A, 8K steps program + 8K words data memory, RS-232C port

Automation > PLC CPU-module
CPM2C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron CP1E-N30DR-A CPU serves as a dependable programmable logic controller engineered to oversee manufacturing equipment, material handling devices, and sequential control loops. This processor handles mixed signal configurations and relay outputs to coordinate automated industrial workflows effectively. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Supply voltage type: AC
  • Number of digital inputs: 18
  • Input type: PNP/NPN
  • Number of digital outputs: 12
  • Output type: Relay
  • Program capacity: 8 K steps
  • Data memory capacity: 8 K words
  • Logic execution time: 1.19 µs
  • Communication port(s): Serial RS-232C, USB
  • Number of Ethernet ports: 0
  • Number of USB ports: 1
  • Number of RS-232 ports: 1
  • Number of RS-485 ports: 0
  • Communication option(s): CompoBus/S Slave, Ethernet TCP/IP, Serial RS-232C, Serial RS-422, Serial RS-485
  • Max. encoder input frequency: 100 kHz
  • Max. number of PTP axes: 0

More info

▲

Specifications

Supply voltage typeAC
Number of digital inputs18
Input typePNP/NPN
Number of digital outputs12
Output typeRelay
Program capacity8 K steps
Data memory capacity8 K words
Logic execution time1.19 µs
Communication port(s)Serial RS-232C, USB
Number of Ethernet ports0
Number of USB ports1
Number of RS-232 ports1
Number of RS-485 ports0
Communication option(s)CompoBus/S Slave, Ethernet TCP/IP, Serial RS-232C, Serial RS-422, Serial RS-485
Max. encoder input frequency100 kHz
Max. number of PTP axes0
Max. pulse output frequency0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels28
Max. number of local I/O points150
Max. number of expansion units3
Built-in auxiliary 24 VDC output300 mA
Operating temperature range0-55 °C
Height90 mm
Width130 mm
Depth85 mm
