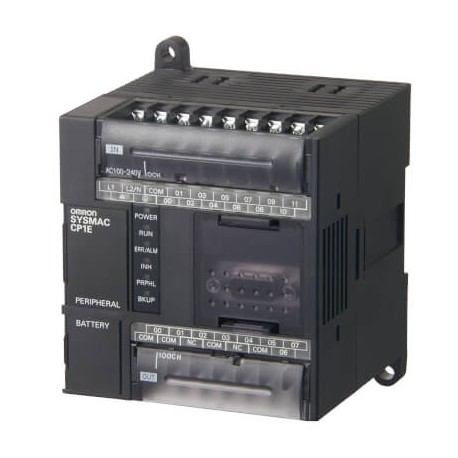

CP1E-N20DT-D 298944 CP1EN20DTD OMRON CPU 12/8 I/O DC Outputs Transistor NPN 8K Program 8K Data
CP1E-N20DT-D
298944
CP1EN20DTD
OMRON
1 Pcs.
Automation > PLC CPU-module
CPM2C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Omron CP1E-N20DT-D is a compact CPU that delivers dependable logic processing and peripheral communication for factory automation tasks. Industrial controllers interpret sensor data and control actuators, keeping automated systems running according to programmed instructions.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Supply voltage type: DC
- Number of digital inputs: 12
- Input type: PNP/NPN
- Number of digital outputs: 8
- Output type: NPN
- Program capacity: 8 K steps
- Data memory capacity: 8 K words
- Logic execution time: 1.19 µs
- Communication port(s): Serial RS-232C, USB
- Number of Ethernet ports: 0
- Number of USB ports: 1
- Number of RS-232 ports: 1
- Number of RS-485 ports: 0
- Max. encoder input frequency: 100 kHz
- Max. number of PTP axes: 2
- Max. pulse output frequency: 100 kHz
More info
▲Specifications
| Supply voltage type | DC |
| Number of digital inputs | 12 |
| Input type | PNP/NPN |
| Number of digital outputs | 8 |
| Output type | NPN |
| Program capacity | 8 K steps |
| Data memory capacity | 8 K words |
| Logic execution time | 1.19 µs |
| Communication port(s) | Serial RS-232C, USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 1 |
| Number of RS-485 ports | 0 |
| Communication option(s) | None |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 2 |
| Max. pulse output frequency | 100 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real-time clock | |
| Analog option boards | |
| Max. number of analog I/O channels | 0 |
| Max. number of local I/O points | 20 |
| Max. number of expansion units | 0 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | 0-55 °C |
| Height | 90 mm |
| Width | 86 mm |
| Depth | 85 mm |
