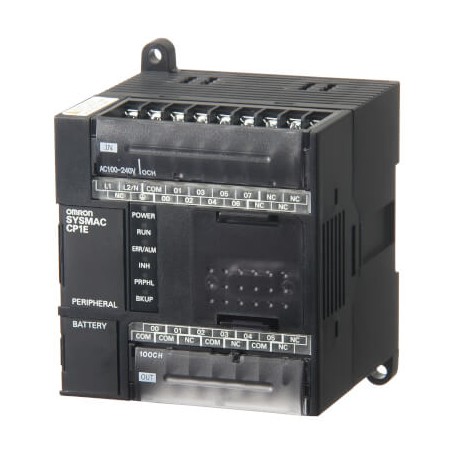

OMRON CP1E-N14DT1-D CP1E-N14DT1-D 333292 CP1EN14DT1D OMRON CPU 8/6 I/O, DC Outputs PNP Transistor 8K Program 8K Data View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1E-N14DT1-D 333292 CP1EN14DT1D OMRON CPU 8/6 I/O, DC Outputs PNP Transistor 8K Program 8K Data

CP1E-N14DT1-D

333292

CP1EN14DT1D

OMRON

1 Pcs.

CPU 8/6 I/O, DC Outputs PNP Transistor 8K Program 8K Data PLC, 24 VDC supply, 8 x 24 VDC inputs, 6 x PNP outputs 0.3 A, 8K steps program + 8K words data memory, RS-232C port

Automation > PLC CPU-module
CPM2C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron CP1E-N14DT1-D CPU acts as a compact programmable logic controller unit utilized to manage discrete input signals and control transistorized output devices in localized industrial automation setups. Logic controllers execute user-defined programs to automate machinery sequences, monitor safety interlocks, and interface with operator panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Supply voltage type: DC
  • Number of digital inputs: 8
  • Input type: PNP/NPN
  • Number of digital outputs: 6
  • Output type: PNP
  • Program capacity: 8 K steps
  • Data memory capacity: 8 K words
  • Logic execution time: 1.19 µs
  • Communication port(s): Serial RS-232C, USB
  • Number of Ethernet ports: 0
  • Number of USB ports: 1
  • Number of RS-232 ports: 1
  • Number of RS-485 ports: 0
  • Max. encoder input frequency: 100 kHz
  • Max. number of PTP axes: 2
  • Max. pulse output frequency: 100 kHz

More info

▲

Specifications

Supply voltage typeDC
Number of digital inputs8
Input typePNP/NPN
Number of digital outputs6
Output typePNP
Program capacity8 K steps
Data memory capacity8 K words
Logic execution time1.19 µs
Communication port(s)Serial RS-232C, USB
Number of Ethernet ports0
Number of USB ports1
Number of RS-232 ports1
Number of RS-485 ports0
Communication option(s)None
Max. encoder input frequency100 kHz
Max. number of PTP axes2
Max. pulse output frequency100 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels0
Max. number of local I/O points14
Max. number of expansion units0
Built-in auxiliary 24 VDC output0 mA
Operating temperature range0-55 °C
Height90 mm
Width86 mm
Depth85 mm
