View larger
Images are for illustrative purposes only. Please refer to data sheet for details

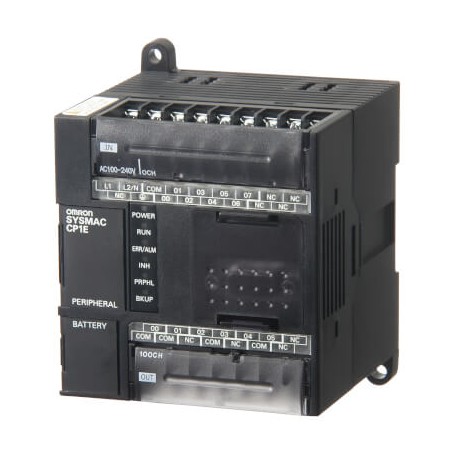

CP1E-N14DR-D 333290 CP1EN14DRD OMRON CPU 8/6 I/O DC Relay Outputs 8K Program 8K Data
CP1E-N14DR-D
333290
CP1EN14DRD
OMRON
1 Pcs.
CPU 8/6 I/O DC Relay Outputs 8K Program 8K Data
PLC, 24 VDC supply, 8 x 24 VDC inputs, 6 x relay outputs 2 A, 8K steps program + 8K words data memory, RS-232C port
Automation > PLC CPU-module
CPM2C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Supply voltage type | DC |
| Number of digital inputs | 8 |
| Input type | PNP/NPN |
| Number of digital outputs | 6 |
| Output type | Relay |
| Program capacity | 8 K steps |
| Data memory capacity | 8 K words |
| Logic execution time | 1.19 µs |
| Communication port(s) | Serial RS-232C, USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 1 |
| Number of RS-485 ports | 0 |
| Communication option(s) | None |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 0 |
| Max. pulse output frequency | 0 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real-time clock | |
| Analog option boards | |
| Max. number of analog I/O channels | 0 |
| Max. number of local I/O points | 14 |
| Max. number of expansion units | 0 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | 0-55 °C |
| Height | 90 mm |
| Width | 86 mm |
| Depth | 85 mm |
