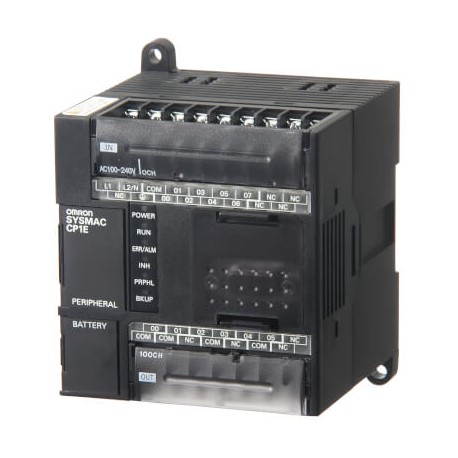

OMRON CP1E-N14DR-A CP1E-N14DR-A 333287 CP1EN14DRA OMRON CPU 8/6 I/O AC Relay Outputs 8K Program 8K Data View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1E-N14DR-A 333287 CP1EN14DRA OMRON CPU 8/6 I/O AC Relay Outputs 8K Program 8K Data

CP1E-N14DR-A

333287

CP1EN14DRA

OMRON

1 Pcs.

CPU 8/6 I/O AC Relay Outputs 8K Program 8K Data CP1E-N14DR-A

Automation > PLC CPU-module
CPM2C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron CP1E-N14DR-A CPU serves as a compact programmable logic controller designed to manage small automation tasks, machine control panels, and discrete manufacturing processes. This unit coordinates digital sensors and actuators within an industrial architecture to execute automated sequences reliably. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Supply voltage type: AC
  • Number of digital inputs: 8
  • Input type: PNP/NPN
  • Number of digital outputs: 6
  • Output type: Relay
  • Program capacity: 8 K steps
  • Data memory capacity: 8 K words
  • Logic execution time: 1.19 µs
  • Communication port(s): Serial RS-232C, USB
  • Number of Ethernet ports: 0
  • Number of USB ports: 1
  • Number of RS-232 ports: 1
  • Number of RS-485 ports: 0
  • Max. encoder input frequency: 100 kHz
  • Max. number of PTP axes: 0
  • Max. pulse output frequency: 0 kHz

More info

▲

Specifications

Supply voltage typeAC
Number of digital inputs8
Input typePNP/NPN
Number of digital outputs6
Output typeRelay
Program capacity8 K steps
Data memory capacity8 K words
Logic execution time1.19 µs
Communication port(s)Serial RS-232C, USB
Number of Ethernet ports0
Number of USB ports1
Number of RS-232 ports1
Number of RS-485 ports0
Communication option(s)None
Max. encoder input frequency100 kHz
Max. number of PTP axes0
Max. pulse output frequency0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels0
Max. number of local I/O points14
Max. number of expansion units0
Built-in auxiliary 24 VDC output0 mA
Operating temperature range0-55 °C
Height90 mm
Width86 mm
Depth85 mm
